Flow cytometric analysis of RACK1 expression in HepG2 cells using RACK1 antibody (R021791, 1:2,000). Green, isotype control; red, RACK1.

Immunocytochemical staining of HepG2 cells with RACK1 antibody (R021791, 1:1,000). Nuclei were stained blue with DAPI; RACK1 was stained magenta with Alexa Fluor® 647. Images were taken using Leica stellaris 5. Protein abundance based on laser Intensity and smart gain: Medium. Scale bar: 20 μm.

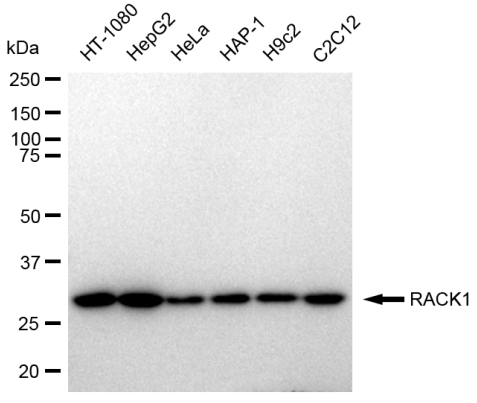

Western blotting analysis using RACK1 antibody (R021791). Total cell lysates (30 μg) from various cell lines were loaded and separated by SDS-PAGE. The blot was incubated with RACK1 antibody (R021791, 1:5,000) and HRP-conjugated goat anti-rabbit secondary antibody (1:20,000) respectively. Image was developed using ECL Substrate Kit.

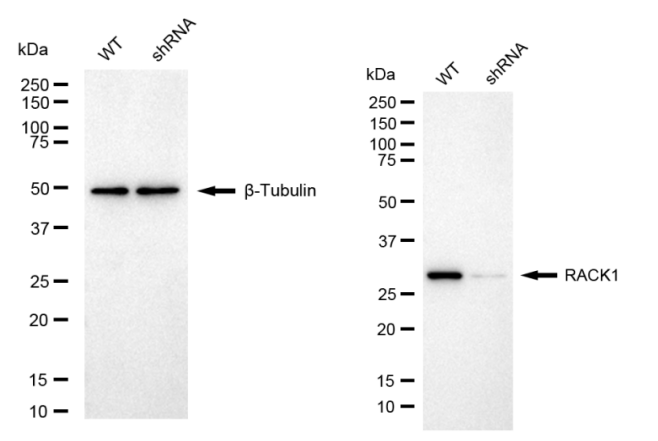

Western blotting analysis using RACK1 antibody (R021791). RACK1 expression in wild-type (WT) and RACK1 shRNA knockdown (KD) HeLa cells with 20 μg of total cell lysates. β-Tubulin serves as a loading control. The blot was incubated with RACK1 antibody (R021791, 1:5,000) and HRP-conjugated goat anti-rabbit secondary antibody (1:20,000) respectively. Image was developed using ECL Substrate Kit.

Immunocytochemical staining of HeLa cells using RACK1 antibody (R021791, 1:1,000), Top panel: wild-type (WT); Bottom panal: RACK1 shRNA knockdown (KD). Nuclei were stained blue with DAPI; RACK1 was stained magenta with Alexa Fluor® 647. Scale bar, 20 μm.
