Flow cytometric analysis of Paxillin expression in HT-1080 cells using Paxillin antibody (R021745, 1:2,000). Green, isotype control; red, Paxillin.

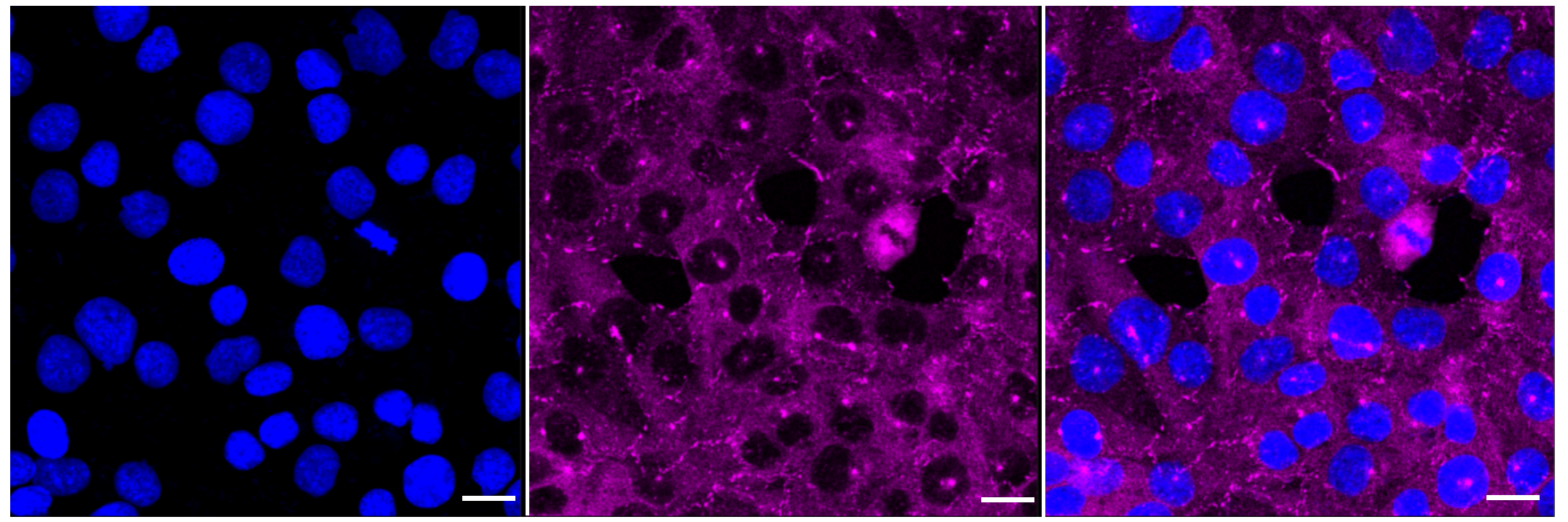

Immunocytochemical staining of HT-1080 cells with Paxillin antibody (R021745, 1:1,000). Nuclei were stained blue with DAPI; Paxillin was stained magenta with Alexa Fluor® 647. Images were taken using Leica stellaris 5. Protein abundance based on laser Intensity and smart gain: High. Scale bar: 20 μm.

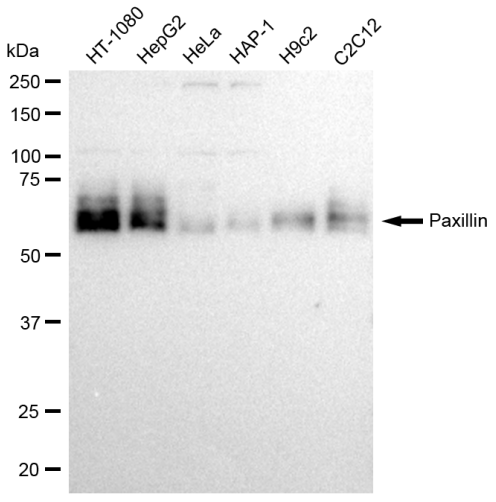

Western blotting analysis using Paxillin antibody (R021745). Total cell lysates (30 μg) from various cell lines were loaded and separated by SDS-PAGE. The blot was incubated with Paxillin antibody (R021745, 1:5,000) and HRP-conjugated goat anti-rabbit secondary antibody (1:20,000) respectively. Image was developed using ECL Substrate Kit.

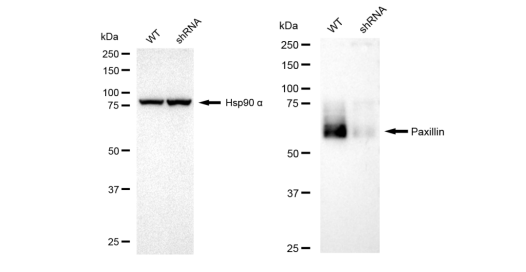

Western blotting analysis using Paxillin antibody (R021745). Paxillin expression in wild type (WT) and Paxillin shRNA knockdown (KD) HeLa cells with 30 μg of total cell lysates. Hsp90 α serves as a loading control. The blot was incubated with Paxillin antibody (R021745, 1:5,000) and HRP-conjugated goat anti-rabbit secondary antibody (1:20,000) respectively. Image was developed using ECL Substrate Kit.

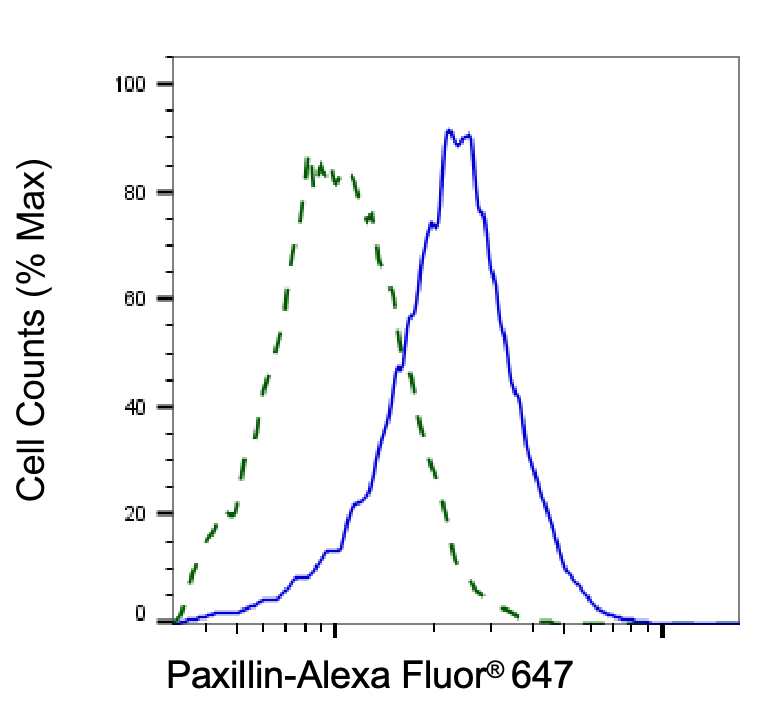

Validation of Paxillin knockdown using flow cytometry. Wild-type(WT, Blue) and knockdown(KD, Green) HeLa cells were stained with Paxillin antibody (R021745, 1:2,000) and analyzed using BD flow cytometer.
