Immunocytochemical staining of C2C12 cells with Phospho-ACC(S79) antibody (R021728, 1:1,000). Nuclei were stained blue with DAPI; Phospho-ACC(S79) was stained magenta with Alexa Fluor® 647. Images were taken using Leica stellaris 5. Protein abundance based on laser Intensity and smart gain: Low. Scale bar, 20 μm.

Immunohistochemistry was performed on paraffin-embedded mouse lung using phospho-ACC(S79) antibody (R021728, 1:200). Antigen retrieval was done in sodium citrate buffer (pH 6.0). DAB was used for detection, with hematoxylin counterstaining. Images were acquired using a Nikon Ci-L Plus microscope (40× objective). Scale bar: 25 μm.

Immunohistochemistry was performed on paraffin-embedded mouse liver using phospho-ACC(S79) antibody (R021728, 1:200). Antigen retrieval was done in sodium citrate buffer (pH 6.0). DAB was used for detection, with hematoxylin counterstaining. Images were acquired using a Nikon Ci-L Plus microscope (40× objective). Scale bar: 25 μm.

Immunohistochemistry was performed on paraffin-embedded human breast carcinoma using phospho-ACC(S79) antibody (R021728, 1:200). Antigen retrieval was done in sodium citrate buffer (pH 6.0). DAB was used for detection, with hematoxylin counterstaining. Images were acquired using a Nikon Ci-L Plus microscope (40× objective). Scale bar: 25 μm.

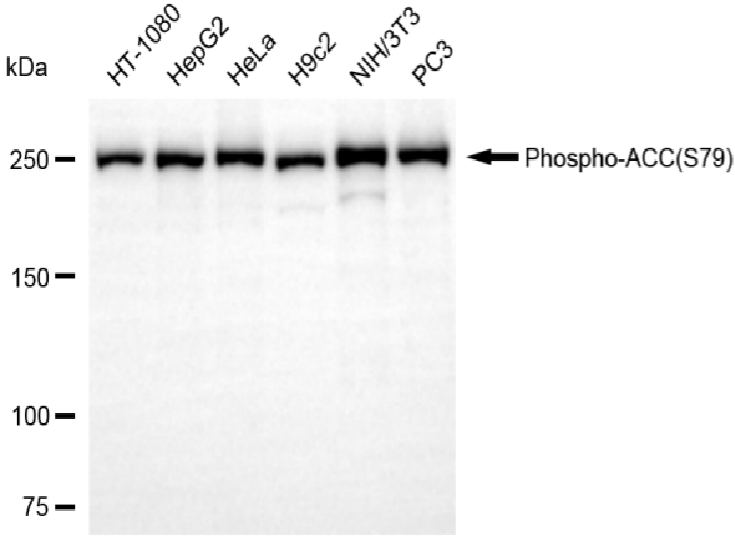

Western blotting analysis using phospho-ACC(S79) antibody (R021728). Total cell lysates (30 μg) from various cell lines were loaded and separated by SDS-PAGE. The blot was incubated with phospho-ACC(S79) antibody (R021728, 1:5,000) and HRP-conjugated goat anti-rabbit secondary antibody (1:20,000) respectively. Image was developed using ECL Substrate Kit.

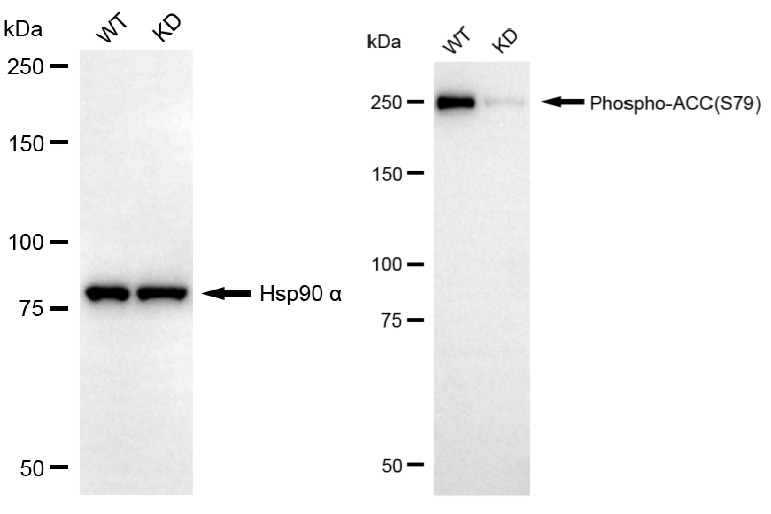

Western blotting analysis using phospho-ACC(S79) antibody (R021728). Phospho-ACC(S79) expression in wild-type (WT) and ACACA knockdown (KD) 293T cells with 20 μg of total cell lysates. Hsp90 α serves as a loading control. The blot was incubated with phospho-ACC(S79) antibody (R021728, 1:5,000) and HRP-conjugated goat anti-rabbit secondary antibody (1:20,000) respectively. Image was developed using ECL Substrate Kit.
