Flow cytometric analysis of Catenin delta 1 expression in C2C12 cells using Catenin delta 1 antibody (R021707, 1:2,000). Green, isotype control; red, Catenin delta 1.

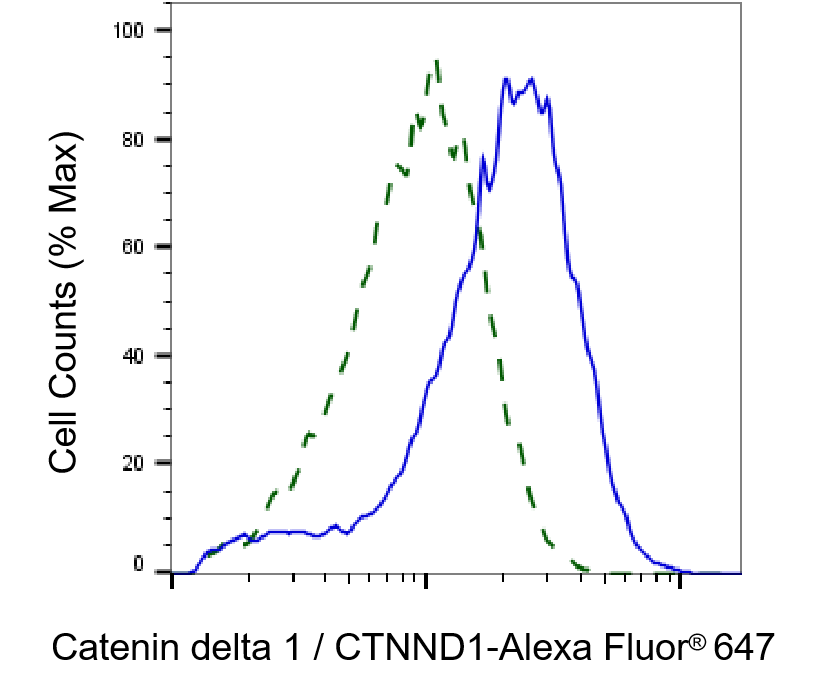

Validation of Catenin delta 1 / CTNND1 knockdown using flow cytometry. Wild-type(WT, Blue) and knockdown(KD, Green) HeLa cells were stained with Catenin delta 1 / CTNND1 antibody (R021707, 1:2,000) and analyzed using BD flow cytometer.

Immunocytochemical staining of C2C12 cells with Catenin delta 1 antibody (R021707, 1:1,000). Nuclei were stained blue with DAPI; Catenin delta 1  was stained magenta with Alexa Fluor® 647. Images were taken using Leica stellaris 5. Protein abundance based on laser Intensity and smart gain: Medium. Scale bar: 20 μm.

Immunohistochemistry was performed on paraffin-embedded human prostatic adenocarcinoma using catenin delta 1 antibody (R021707, 1:200). Antigen retrieval was done in sodium citrate buffer (pH 6.0). DAB was used for detection, with hematoxylin counterstaining. Images were acquired using a Nikon Ci-L Plus microscope (40× objective). Scale bar: 25 μm.

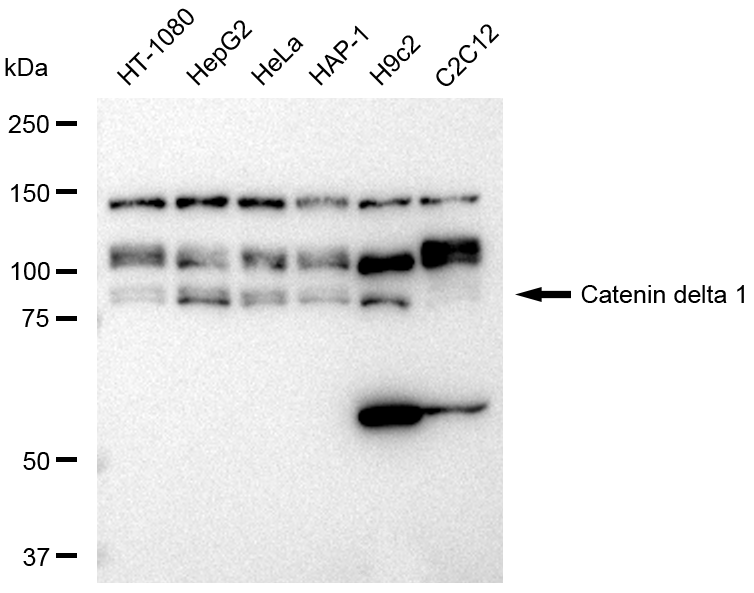

Western blotting analysis using Catenin delta 1 antibody (R021707). Total cell lysates (30 μg) from various cell lines were loaded and separated by SDS-PAGE. The blot was incubated with Catenin delta 1 antibody (R021707, 1:5,000) and HRP-conjugated goat anti-rabbit secondary antibody (1:20,000) respectively. Image was developed using ECL Substrate Kit.

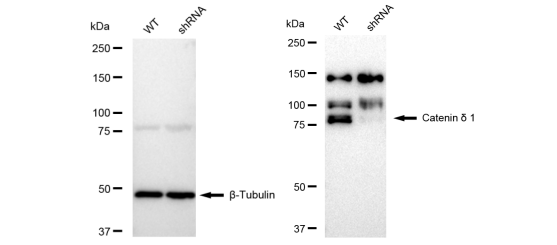

Western blotting analysis using Catenin δ 1 antibody (R021707). Catenin δ 1 expression in wild type (WT) and Catenin δ 1 shRNA knockdown (KD) HeLa cells with 30 μg of total cell lysates . β-Tubulin serves as a loading control. The blot was incubated with Catenin δ 1 antibody (R021707, 1:5,000) and HRP-conjugated goat anti-rabbit secondary antibody (1:20,000) respectively. Image was developed using ECL Substrate Kit.
