Flow cytometric analysis of B cell receptor associated protein 31 expression in HepG2 cells using B cell receptor associated protein 31 antibody (R021625, 1:2,000). Green, isotype control; red, B cell receptor associated protein 31.

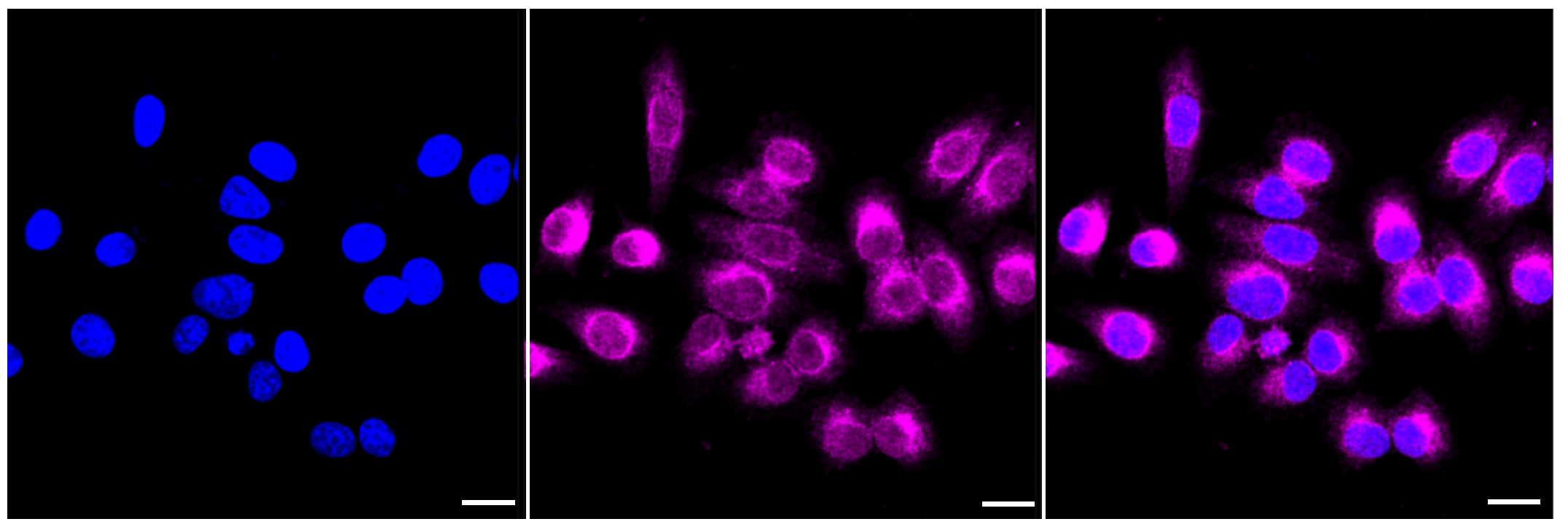

Immunocytochemical staining of HepG2 cells with B cell receptor associated protein 31 antibody (R021625, 1:1,000). Nuclei were stained blue with DAPI; B cell receptor associated protein 31 was stained magenta with Alexa Fluor® 647. Images were taken using Leica stellaris 5. Protein abundance based on laser Intensity and smart gain: Medium. Scale bar: 20 μm.

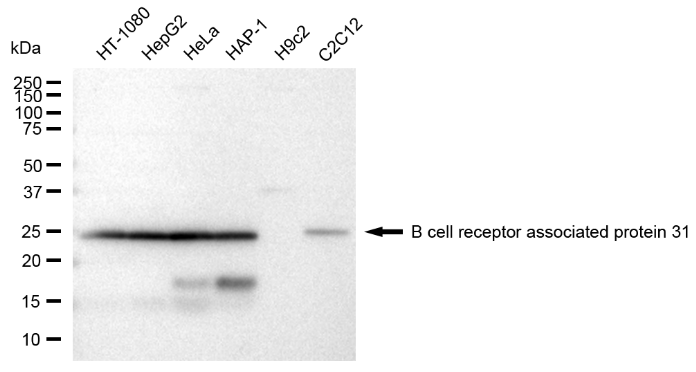

Western blotting analysis using B cell receptor associated protein 31 antibody (R021625). Total cell lysates (30 μg) from various cell lines were loaded and separated by SDS-PAGE. The blot was incubated with B cell receptor associated protein 31 antibody (R021625, 1:5,000) and HRP-conjugated goat anti-rabbit secondary antibody (1:20,000) respectively. Image was developed using ECL Substrate Kit.

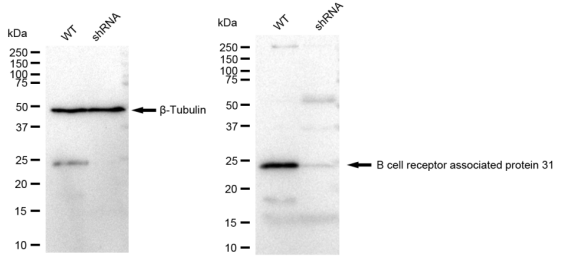

Western blotting analysis using B cell receptor associated protein 31 antibody (R021625). B cell receptor associated protein 31 expression in wild type (WT) and B cell receptor associated protein 31 shRNA knockdown (KD) HeLa cells with 30 μg of total cell lysates. β-Tubulin serves as a loading control. The blot was incubated with B cell receptor associated protein 31 antibody (R021625, 1:5,000) and HRP-conjugated goat anti-rabbit secondary antibody (1:20,000) respectively. Image was developed using ECL Substrate Kit.
