Flow cytometric analysis of Paired box 6 expression in HeLa cells using Paired box 6 antibody (R021572, 1:2,000). Green, isotype control; red, Paired box 6.

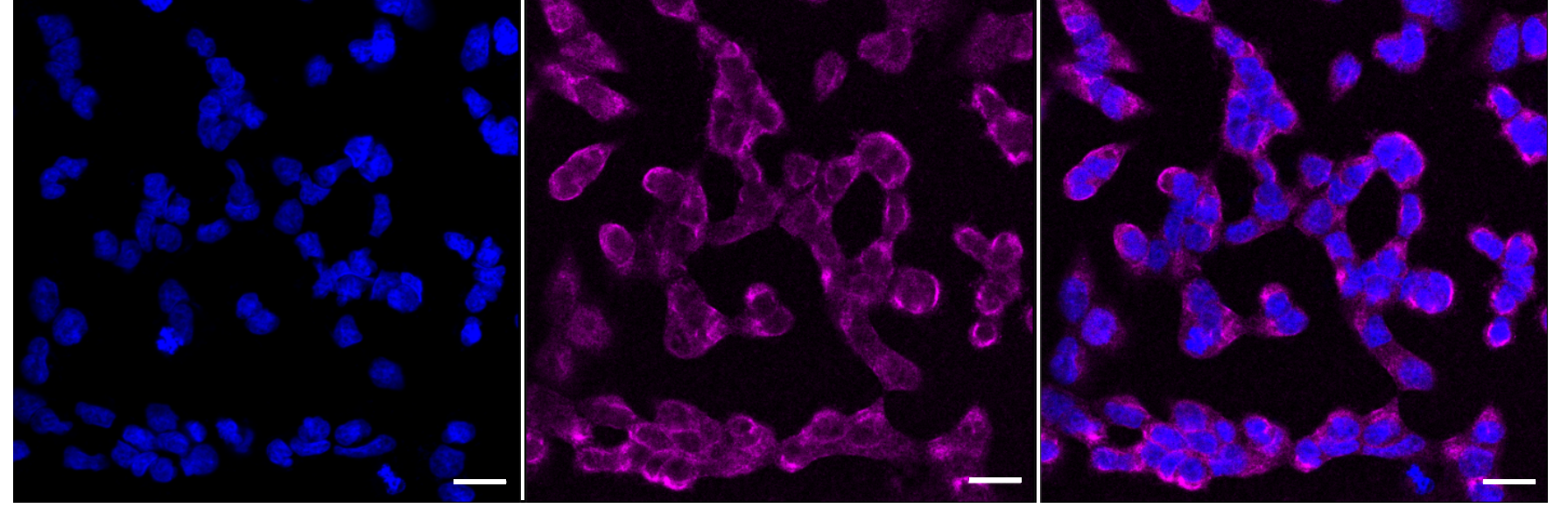

Immunocytochemical staining of HeLa cells with Paired box 6 antibody (R021572, 1:1,000). Nuclei were stained blue with DAPI; Paired box 6 was stained magenta with Alexa Fluor® 647. Images were taken using Leica stellaris 5. Protein abundance based on laser Intensity and smart gain: Medium. Scale bar: 20 μm.

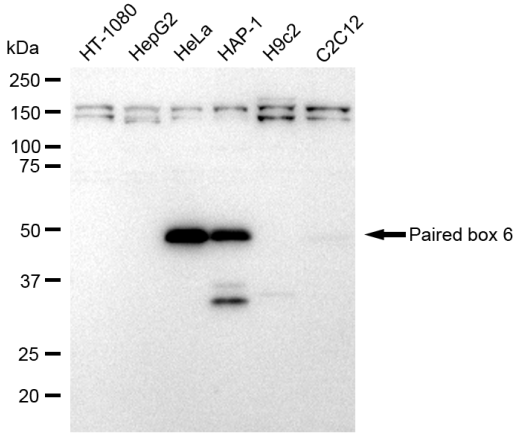

Western blotting analysis using Paired box 6 antibody (R021572). Total cell lysates (30 μg) from various cell lines were loaded and separated by SDS-PAGE. The blot was incubated with Paired box 6 antibody (R021572, 1:5,000) and HRP-conjugated goat anti-rabbit secondary antibody (1:20,000) respectively. Image was developed using ECL Substrate Kit.

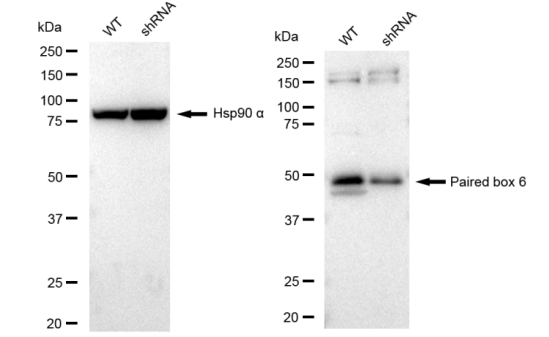

Western blotting analysis using Paired box 6 antibody (R021572). Paired box 6 expression in wild type (WT) and paired box 6 shRNA knockdown (KD) HeLa cells with 30 μg of total cell lysates. Hsp90 α serves as a loading control. The blot was incubated with Paired box 6 antibody (R021572, 1:5,000) and HRP-conjugated goat anti-rabbit secondary antibody (1:20,000) respectively. Image was developed using ECL Substrate Kit.
