Flow cytometric analysis of TEAD1 expression in HepG2 cells using TEAD1 antibody (R021547, 1:2,000). Green, isotype control; red, TEAD1.

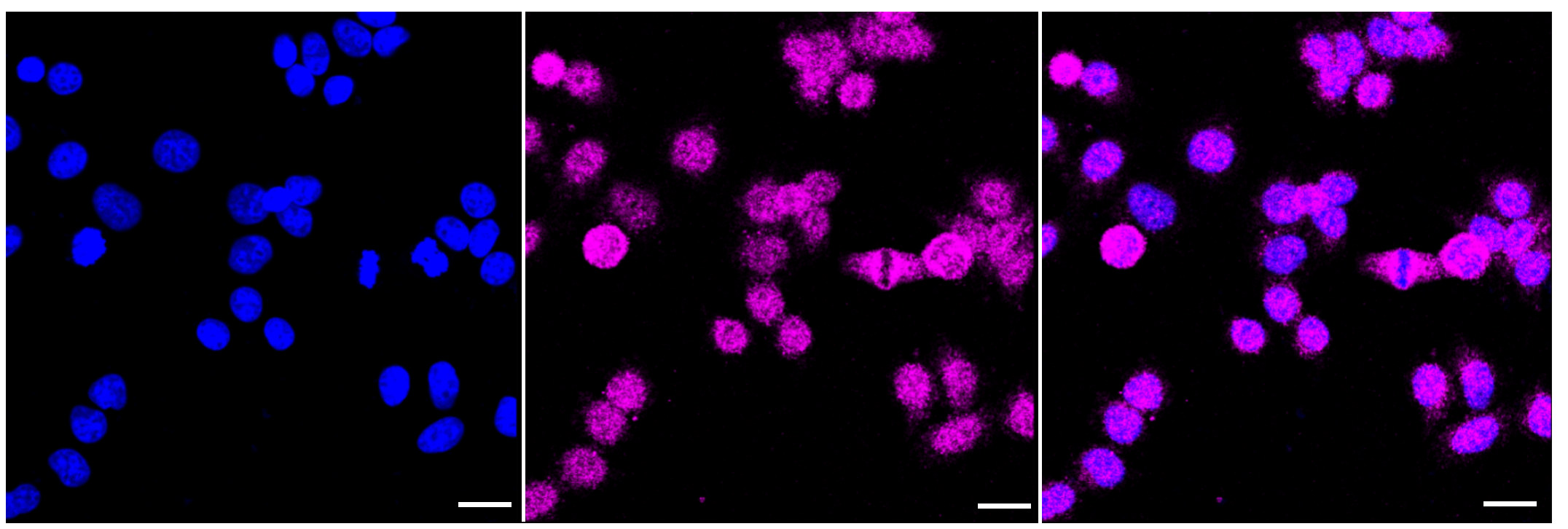

Immunocytochemical staining of HepG2 cells with TEAD1 antibody (R021547, 1:1,000). Nuclei were stained blue with DAPI; TEAD1 was stained magenta with Alexa Fluor® 647. Images were taken using Leica stellaris 5. Protein abundance based on laser Intensity and smart gain: Medium. Scale bar: 20 μm.

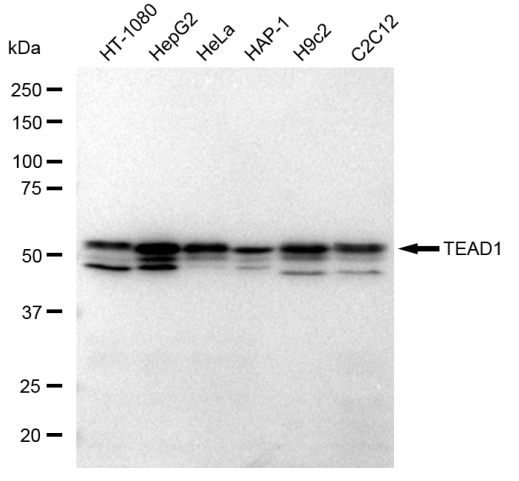

Western blotting analysis using TEAD1 antibody (R021547). Total cell lysates (30 μg) from various cell lines were loaded and separated by SDS-PAGE. The blot was incubated with TEAD1 antibody (R021547, 1:5,000) and HRP-conjugated goat anti-rabbit secondary antibody (1:20,000) respectively. Image was developed using ECL Substrate Kit.

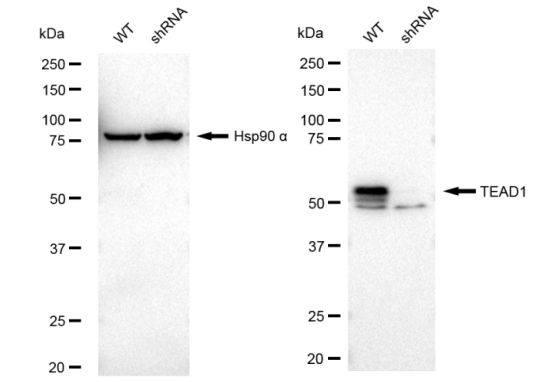

Western blotting analysis using TEAD1 antibody (R021547). TEAD1 expression in wild type (WT) and TEAD1 shRNA knockdown (KD) HeLa cells with 30 μg of total cell lysates. Hsp90 α serves as a loading control. The blot was incubated with TEAD1 antibody (R021547, 1:5,000) and HRP-conjugated goat anti-rabbit secondary antibody (1:20,000) respectively. Image was developed using ECL Substrate Kit.
