Flow cytometric analysis of ELAVL1 expression in HepG2 cells using ELAVL1 antibody (R021132, 1:2,000). Green, isotype control; red, ELAVL1.

Immunocytochemical staining of HepG2 cells with ELAVL1 antibody (R021132, 1:1,000). Nuclei were stained blue with DAPI; ELAVL1 was stained magenta with Alexa Fluor® 647. Images were taken using Leica stellaris 5. Protein abundance based on laser Intensity and smart gain: Medium. Scale bar, 20 μm.

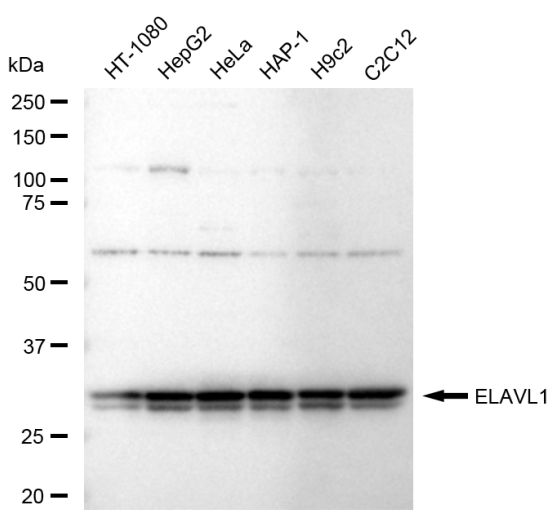

Western blotting analysis using ELAVL1 antibody (R021132). Total cell lysates (30 μg) from various cell lines were loaded and separated by SDS-PAGE. The blot was incubated with ELAVL1 antibody (R021132, 1:5,000) and HRP-conjugated goat anti-rabbit secondary antibody (1:20,000) respectively. Image was developed using ECL Substrate Kit.

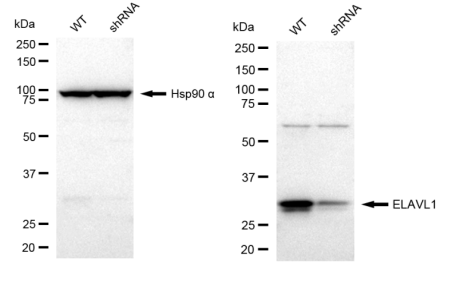

Western blotting analysis using ELAVL1 antibody (R021132). ELAVL1 expression in wild type (WT) and ELAVL1 shRNA knockdown (KD) HeLa cells with 30 μg of total cell lysates. Hsp90 α serves as a loading control. The blot was incubated with ELAVL1 antibody (R021132, 1:5,000) and HRP-conjugated goat anti-rabbit secondary antibody (1:20,000) respectively. Image was developed using ECL Substrate Kit.

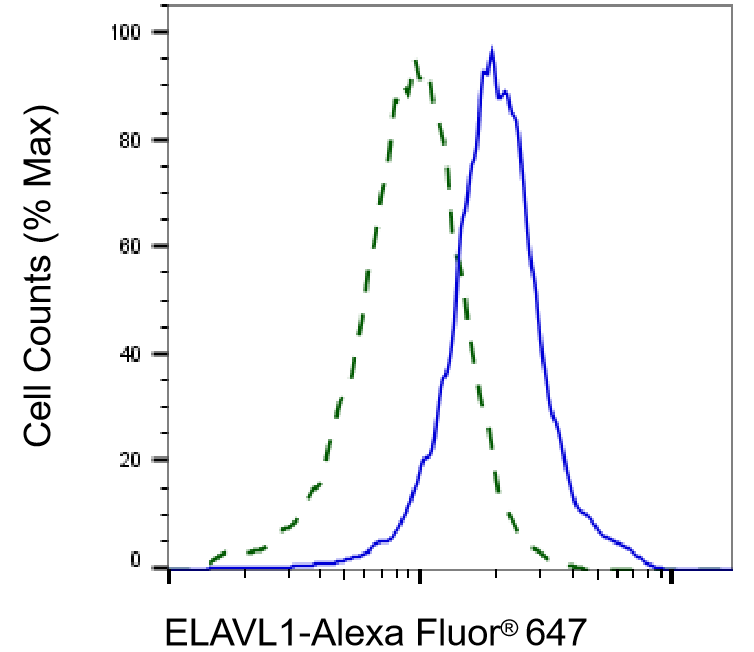

Validation of ELAVL1 knockdown using flow cytometry. Wild-type(WT, Blue) and knockdown(KD, Green) HeLa cells were stained with ELAVL1 antibody (R021132, 1:2,000) and analyzed using BD flow cytometer.
