Flow cytometric analysis of MyD88 expression in HAP-1 cells using MyD88 antibody (R021083, 1:2,000). Green, isotype control; red, MyD88.

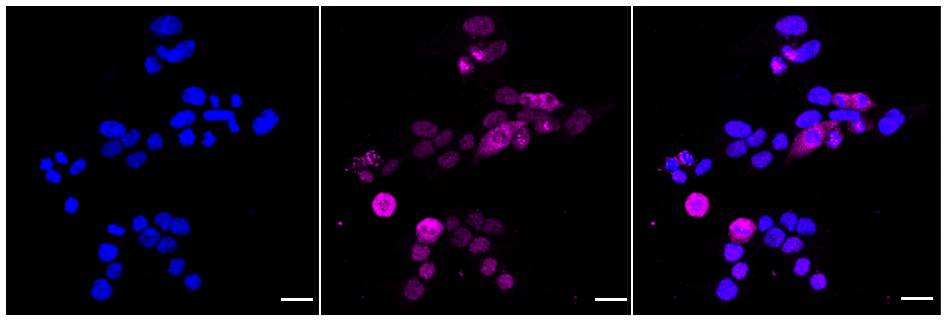

Immunocytochemical staining of HAP-1 cells with MyD88 antibody (R021083, 1:1,000). Nuclei were stained blue with DAPI; MyD88 was stained magenta with Alexa Fluor® 647. Images were taken using Leica stellaris 5. Protein abundance based on laser Intensity and smart gain: High. Scale bar: 20 μm.

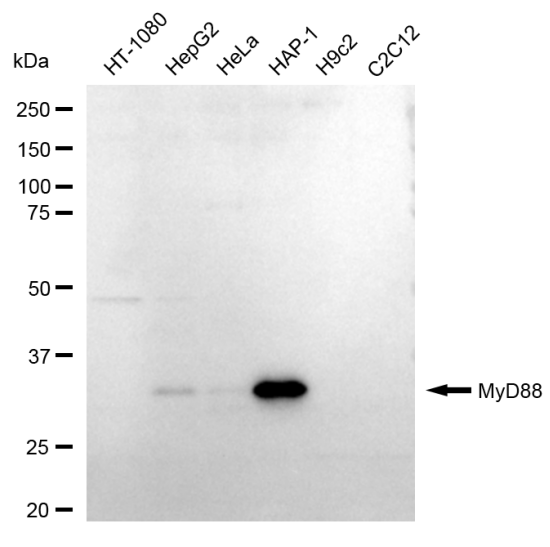

Western blotting analysis using MyD88 antibody (R021083). Total cell lysates (30 μg) from various cell lines were loaded and separated by SDS-PAGE. The blot was incubated with MyD88 antibody (R021083, 1:5,000) and HRP-conjugated goat anti-rabbit secondary antibody (1:20,000) respectively. Image was developed using ECL Substrate Kit.

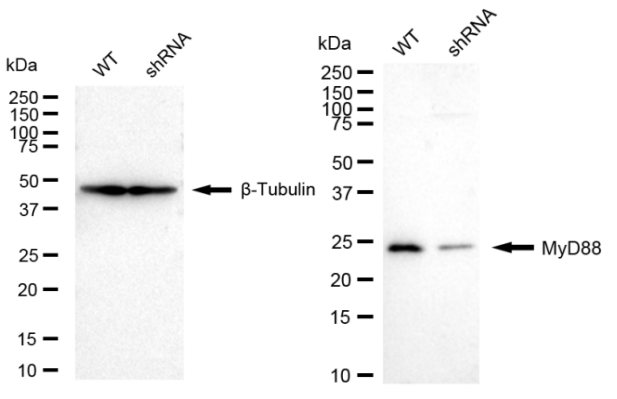

Western blotting analysis using MyD88 antibody (R021083). MyD88 expression in wild type (WT) and MyD88 shRNA knockdown (KD) HT-1080 cells with 20 μg of total cell lysates. β-Tubulin serves as a loading control. The blot was incubated with MyD88 antibody (R021083, 1:5,000) and HRP-conjugated goat anti-rabbit secondary antibody (1:20,000) respectively. Image was developed using ECL Substrate Kit.
