Flow cytometric analysis of MEKK2 expression in HepG2 cells using MEKK2 antibody (R021081, 1:2,000). Green, isotype control; red, MEKK2.

Immunocytochemical staining of Hela cells with MEKK2 antibody (R021081, 1:1,000). Nuclei were stained blue with DAPI; MEKK2 was stained magenta with Alexa Fluor® 647. Images were taken using Leica stellaris 5. Protein abundance based on laser Intensity and smart gain: Medium. Scale bar: 20 μm.

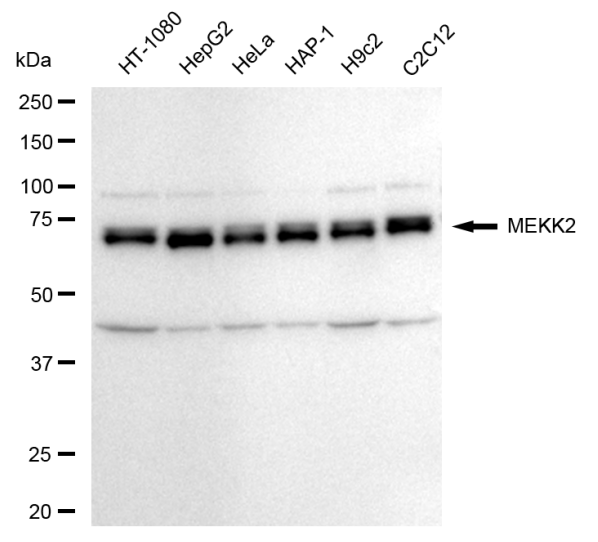

Western blotting analysis using MEKK2 antibody (R021081). Total cell lysates (30 μg) from various cell lines were loaded and separated by SDS-PAGE. The blot was incubated with MEKK2 antibody (R021081, 1:20,000) and HRP-conjugated goat anti-rabbit secondary antibody (1:20,000) respectively. Image was developed using ECL Substrate Kit.

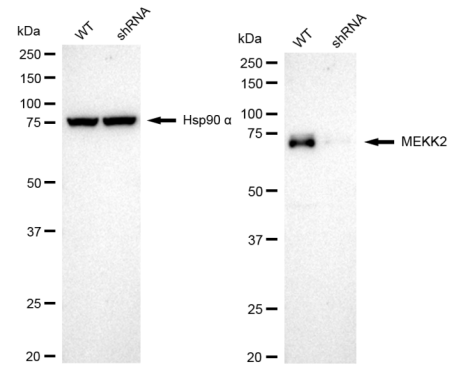

Western blotting analysis using MEKK2 antibody (R021081). MEKK2 expression in wild type (WT) and MEKK2 shRNA knockdown (KD) HT-1080 cells with 20 μg of total cell lysates. Hsp90 α serves as a loading control. The blot was incubated with MEKK2 antibody (R021081, 1:20,000) and HRP-conjugated goat anti-rabbit secondary antibody (1:20,000) respectively. Image was developed using ECL Substrate Kit.
