Flow cytometric analysis of RALBP1 expression in HeLa cells using RALBP1 antibody (R021042, 1:2,000). Green, isotype control; red, RALBP1.

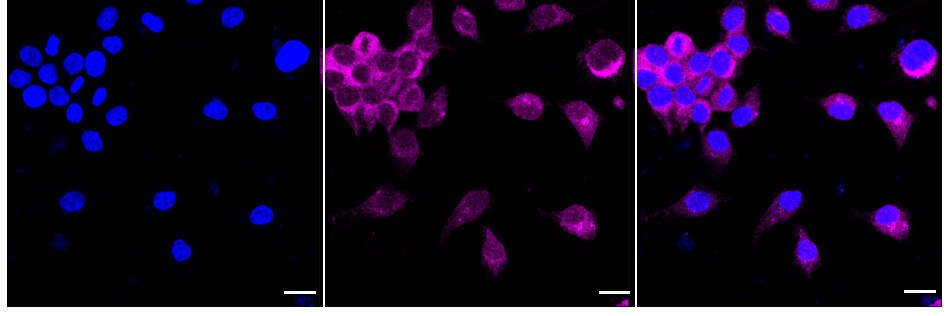

Immunocytochemical staining of Hela cells with RALBP1 antibody (R021042, 1:1,000). Nuclei were stained blue with DAPI; RALBP1 was stained magenta with Alexa Fluor® 647. Images were taken using Leica stellaris 5. Protein abundance based on laser Intensity and smart gain: Medium. Scale bar: 20 μm.

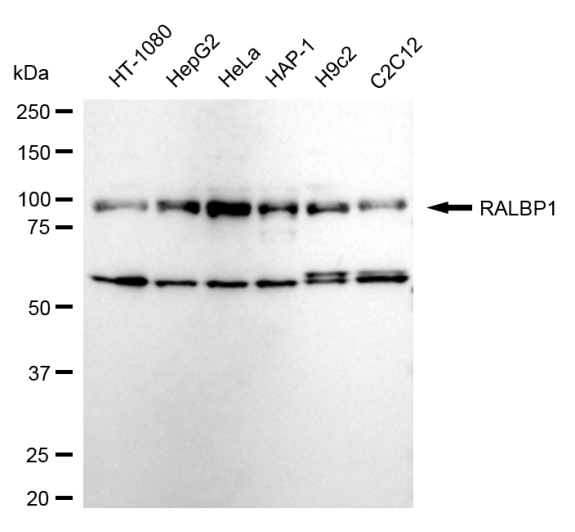

Western blotting analysis using RALBP1 antibody (R021042). Total cell lysates (30 μg) from various cell lines were loaded and separated by SDS-PAGE. The blot was incubated with RALBP1 antibody (R021042, 1:10,000) and HRP-conjugated goat anti-rabbit secondary antibody (1:20,000) respectively. Image was developed using ECL Substrate Kit.

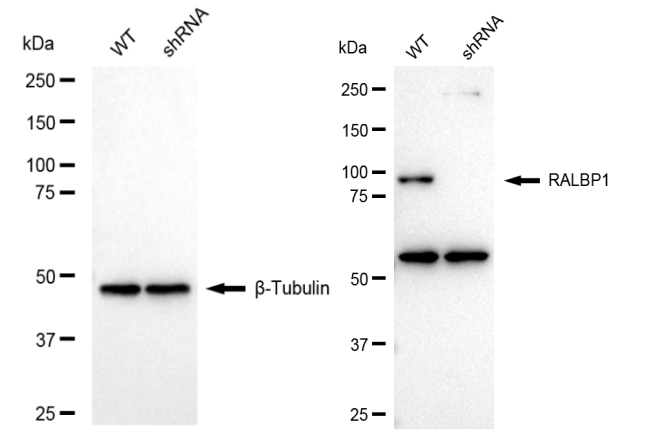

Western blotting analysis using RALBP1 antibody (R021042). RALBP1 expression in wild type (WT) and RALBP1 shRNA knockdown (KD) HeLa cells with 20 μg of total cell lysates. β-Tubulin serves as a loading control. The blot was incubated with RALBP1 antibody (R021042, 1:10,000) and HRP-conjugated goat anti-rabbit secondary antibody (1:20,000) respectively. Image was developed using ECL Substrate Kit.

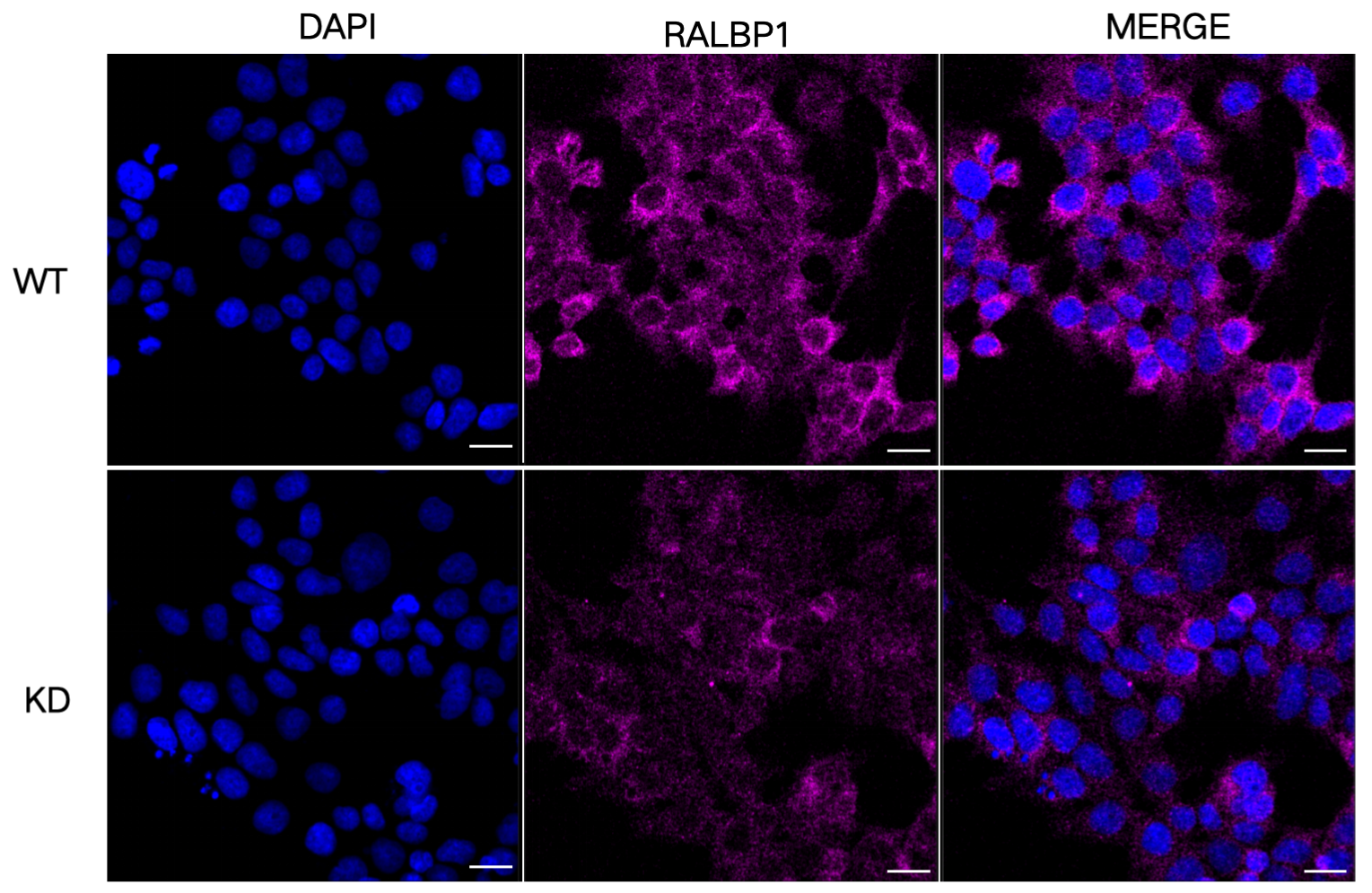

Immunocytochemical staining of HeLa cells using RALBP1 antibody (R021042, 1:1,000), Top panel: wild-type (WT); Bottom panal: RALBP1 shRNA knockdown (KD). Nuclei were stained blue with DAPI; Acyl-CoA dehydrogenase short chain was stained magenta with Alexa Fluor® 647. Scale bar, 20 μm.
