Flow cytometric analysis of Serpin family E member 1 expression in HT-1080 cells using Serpin family E member 1 antibody (R020878, 1:2,000). Green, isotype control; red, Serpin family E member 1.

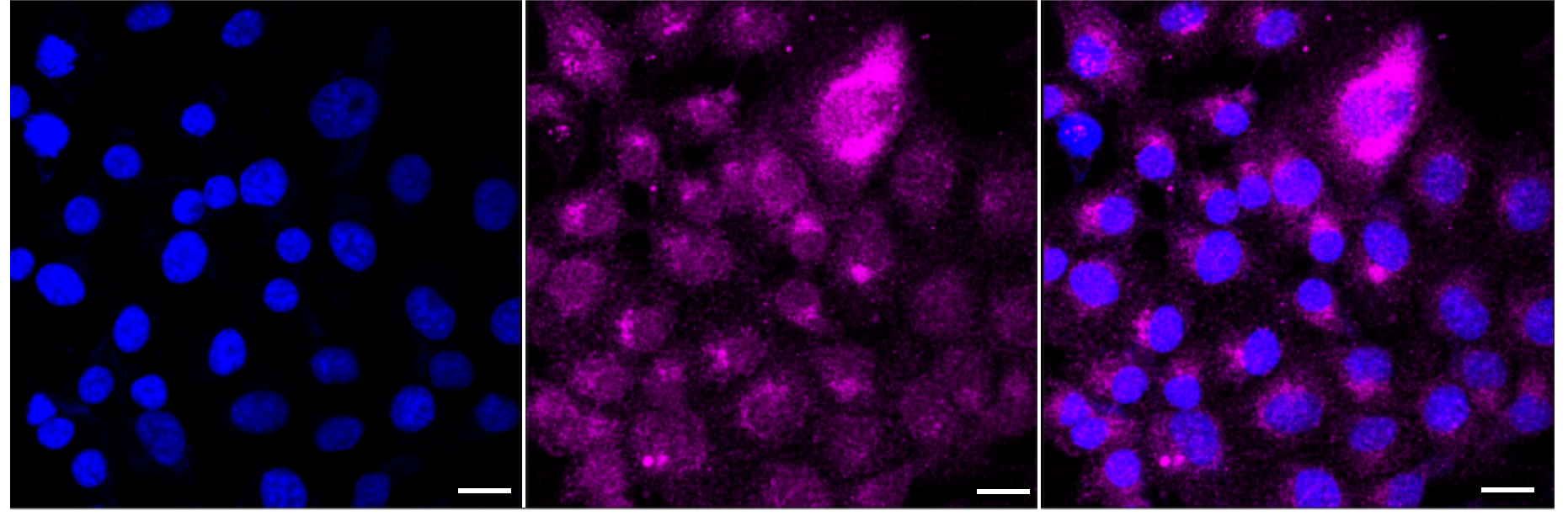

Immunocytochemical staining of HT-1080 cells with Serpin family E member 1 antibody (R020878, 1:1,000) . Nuclei were stained blue with DAPI; Serpin family E member 1 was stained magenta with Alexa Fluor® 647. Images were taken using Leica stellaris 5. Protein abundance based on laser Intensity and smart gain: Low. Scale bar: 20 μm.

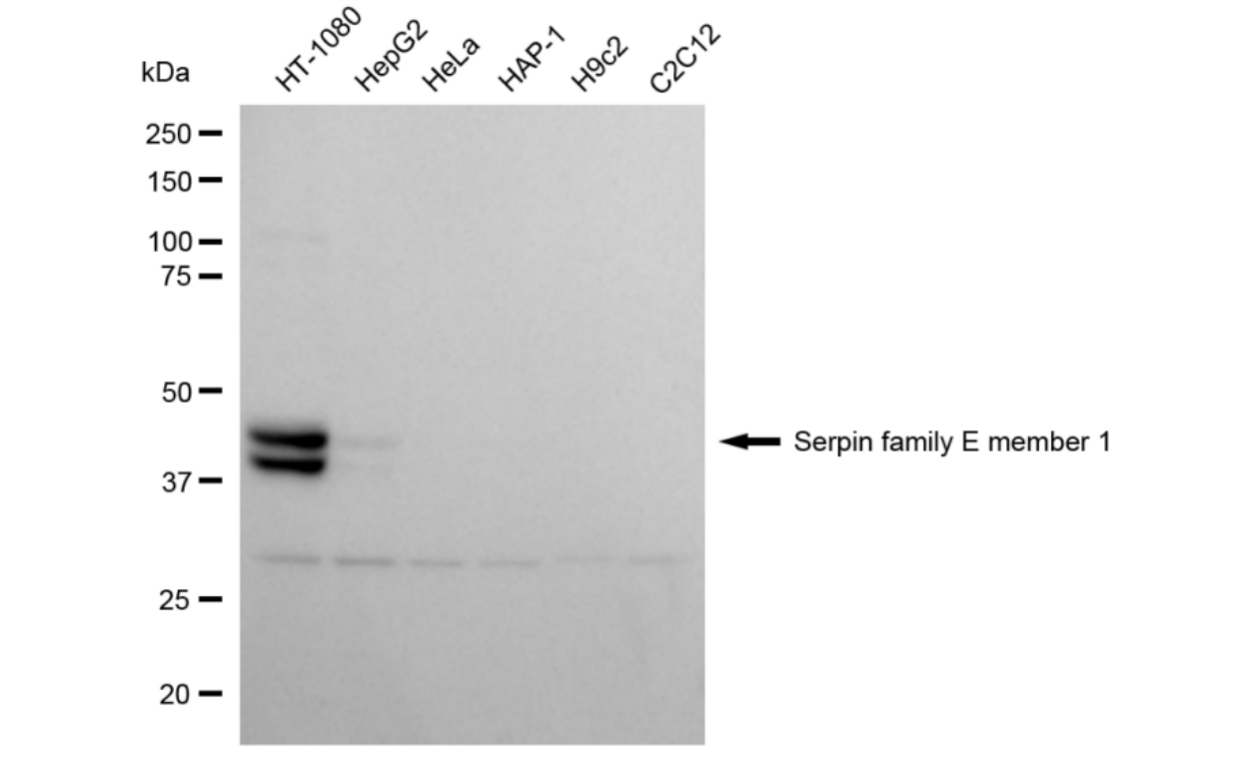

Western blotting analysis using serpin family E member 1 antibody (R020878). Total cell lysates (30 μg) from various cell lines were loaded and separated by SDS-PAGE. The blot was incubated with serpin family E member 1 antibody (R020878, 1:5,000) and HRP-conjugated goat anti-rabbit secondary antibody (1:20,000) respectively. Image was developed using ECL Substrate Kit.

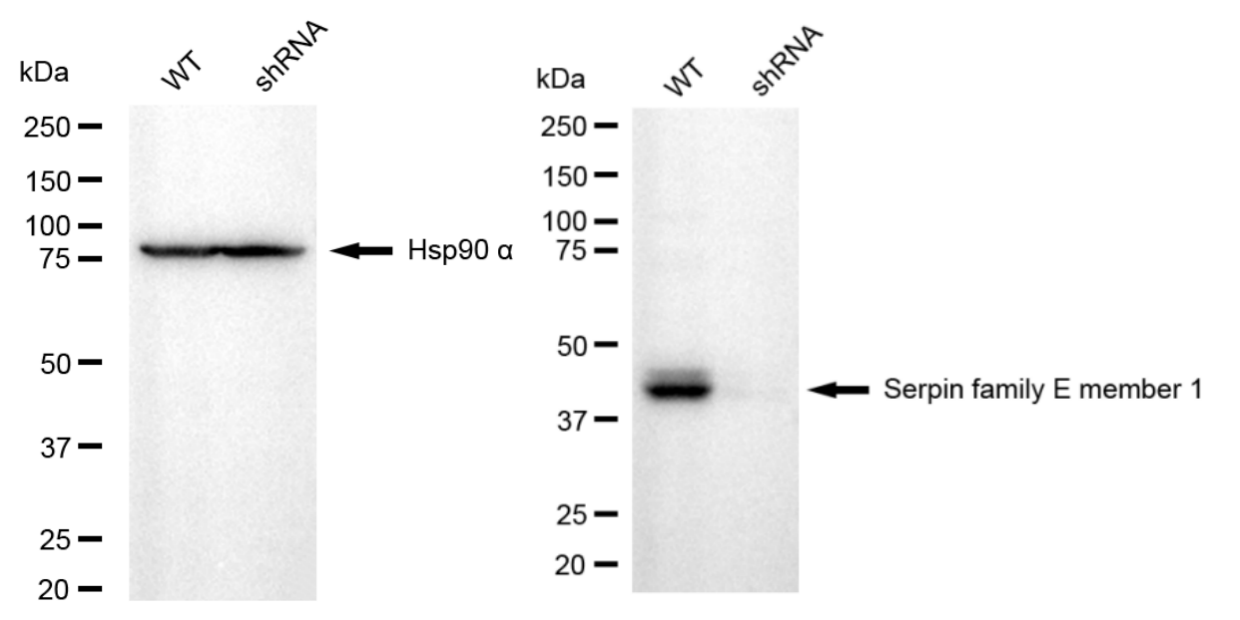

Western blotting analysis using serpin family E member 1 antibody (R020878). Serpin family E member 1expression in wild-type (WT) and serpin family E member 1 (SERPINE1) shRNA knockdown (KD) HT-1080 cells with 20 μg of total cell lysates. Hsp90 α serves as a loading control. The blot was incubated with serpin family E member 1 antibody (R020878, 1:5,000) and HRP-conjugated goat anti-rabbit secondary antibody (1:20,000) respectively. Image was developed using ECL Substrate Kit.
