Flow cytometric analysis of TCP1 expression in HepG2 cells using TCP1 antibody (R020877, 1:2,000). Green, isotype control; red, TCP1.

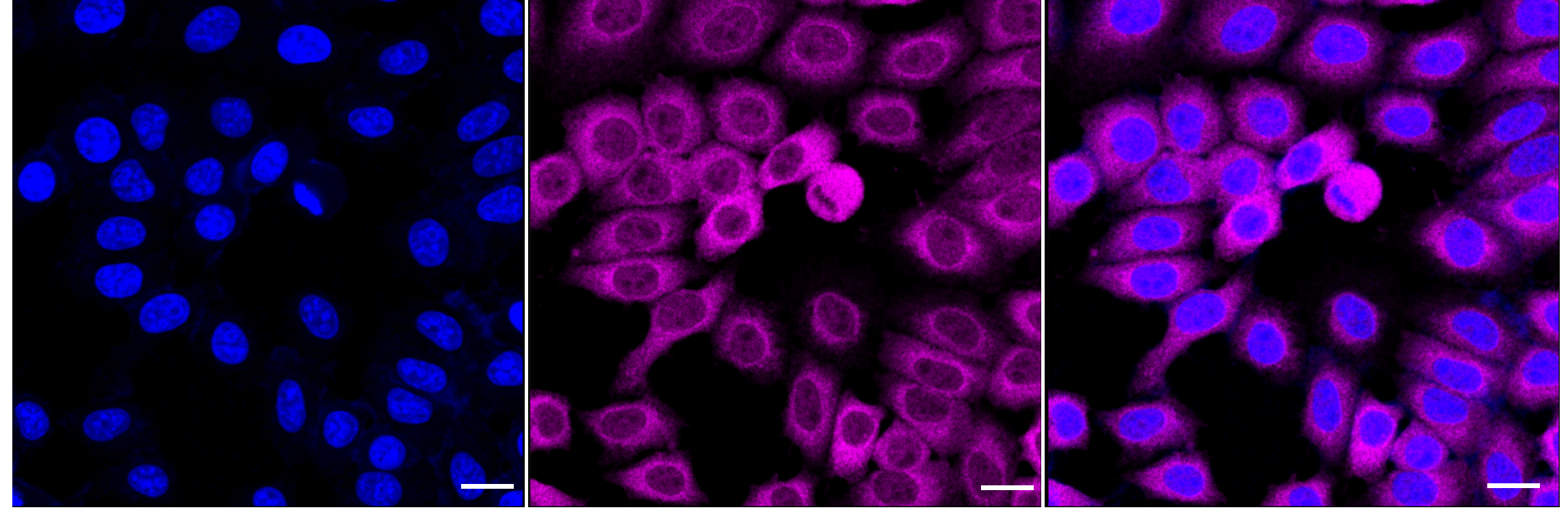

Immunocytochemical staining of HepG2 cells with TCP1 antibody (R020877, 1:1,000). Nuclei were stained blue with DAPI; TCP1 was stained magenta with Alexa Fluor® 647. Images were taken using Leica stellaris 5. Protein abundance based on laser Intensity and smart gain: High. Scale bar: 20 μm.

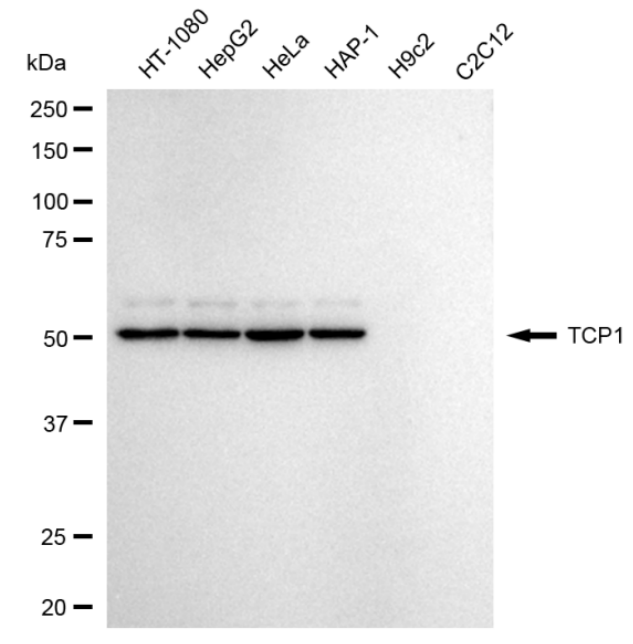

Western blotting analysis using TCP1 antibody (R020877). Total cell lysates (30 μg) from various cell lines were loaded and separated by SDS-PAGE. The blot was incubated with TCP1 antibody (R020877, 1:5,000) and HRP-conjugated goat anti-rabbit secondary antibody (1:20,000) respectively. Image was developed using ECL Substrate Kit.

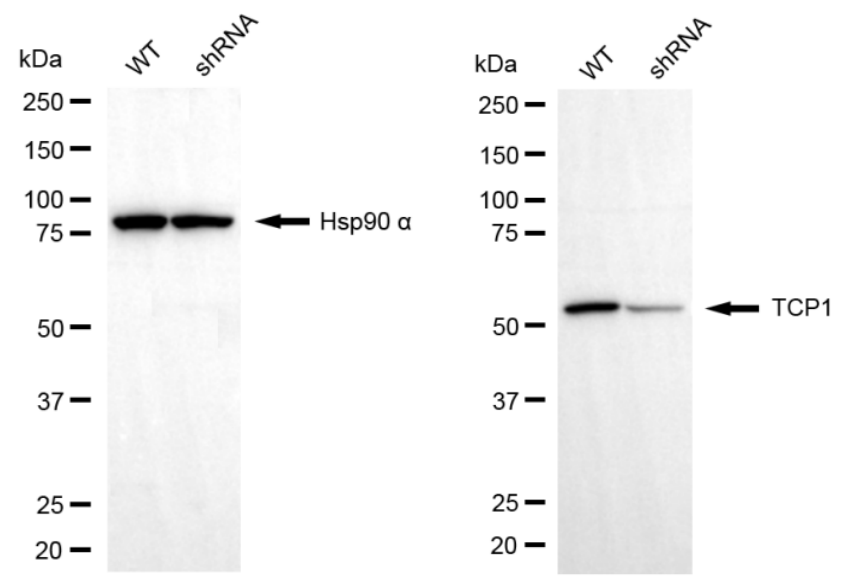

Western blotting analysis using TCP1 antibody (R020877). TCP1 expression in wild type (WT) and TCP1 shRNA knockdown (KD) HT-1080 cells with 20 μg of total cell lysates. Hsp90 α serves as a loading control. The blot was incubated with TCP1 antibody (R020877, 1:5,000) and HRP-conjugated goat anti-rabbit secondary antibody (1:20,000) respectively. Image was developed using ECL Substrate Kit.
