Flow cytometric analysis of IRAK3 in expression HAP-1 cells using IRAK3 antibody (R020713, 1:2,000). Green, isotype control; red, IRAK3.

Immunocytochemical staining of HAP-1 cells with IRAK3 antibody (R020713, 1:1,000). Nuclei were stained blue with DAPI; IRAK3 was stained magenta with Alexa Fluor® 647. Images were taken using Leica stellaris 5. Protein abundance based on laser Intensity and smart gain: Medium. Scale bar: 20 μm.

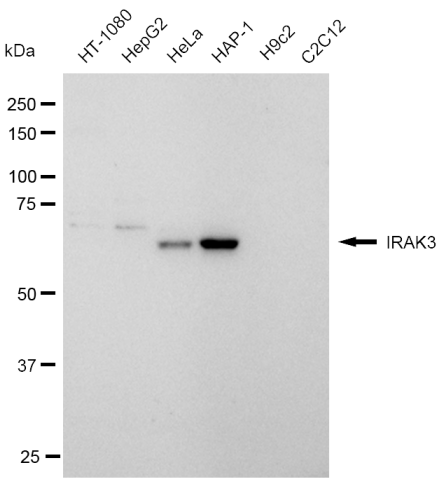

Western blotting analysis using IRAK3 antibody (R020713). Total cell lysates (30 μg) from various cell lines were loaded and separated by SDS-PAGE. The blot was incubated with IRAK3 antibody (R020713, 1:5,000) and HRP-conjugated goat anti-rabbit secondary antibody (1:50,000) respectively. Image was developed using ECL Substrate Kit.

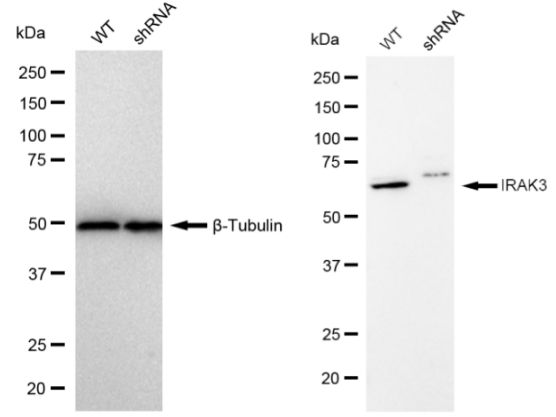

Western blotting analysis using IRAK3 antibody (R020713). IRAK3 expression in wild type (WT) and IRAK3 shRNA knockdown (KD) HT-1080 cells with 30 μg of total cell lysates. β-Tubulin serves as a loading control. The blot was incubated with IRAK3 antibody (R020713, 1:5,000) and HRP-conjugated goat anti-rabbit secondary antibody (1:50,000) respectively. Image was developed using ECL Substrate Kit.
