Flow cytometric analysis of Integrin beta 1 expression in HT-1080 cells using Integrin beta 1 antibody (R020617, 1:2,000). Green, isotype control; red, Integrin beta 1.

Immunocytochemical staining of HT-1080 cells with Integrin beta 1 antibody (R020617, 1:1,000). Nuclei were stained blue with DAPI; Integrin beta 1 was stained magenta with Alexa Fluor® 647. Images were taken using Leica stellaris 5. Protein abundance based on laser Intensity and smart gain: Low. Scale bar: 20 μm.

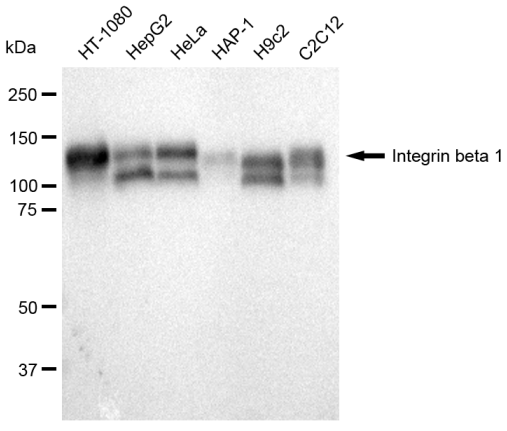

Western blotting analysis using Integrin β 1 antibody (R020617). Total cell lysates (30 μg) from various cell lines were loaded and separated by SDS-PAGE. The blot was incubated with Integrin β 1 antibody (R020617,1:5,000) and HRP-conjugated goat anti rabbit secondary antibody (1:20,000) respectively. Image was developed using ECL Substrate Kit.

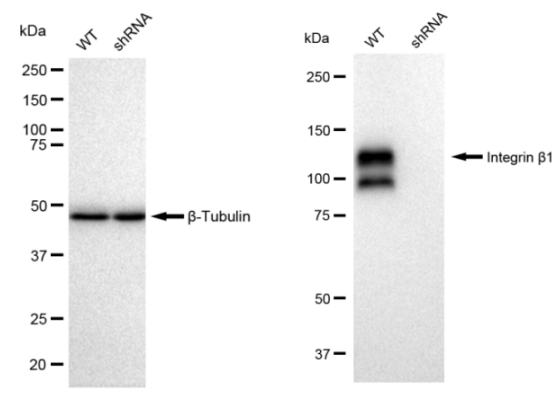

Western blotting analysis using Integrin beta 1 antibody (R020617). Integrin beta 1 expression in wild type (WT) and Integrin beta 1 shRNA knockdown (KD) HeLa cells with 30 μg of total cell lysates. β-Tubulin serves as a loading control. The blot was incubated with Integrin beta 1 antibody (R020617,1:5,000) and HRP-conjugated goat anti rabbit secondary antibody (1:50,000) respectively. Image was developed using ECL Substrate Kit.
