Flow cytometric analysis of CSNK1A1 expression in C2C12 cells using CSNK1A1 antibody (R020472, 1:2,000). Green, isotype control; red, CSNK1A1.

Immunocytochemical staining of Hela cells with CSNK1A1 antibody (R020472, 1:1,000) . Nuclei were stained blue with DAPI; CSNK1A1 was stained magenta with Alexa Fluor® 647. Images were taken using Leica stellaris 5. Protein abundance based on laser Intensity and smart gain: Medium. Scale bar, 20 μm.

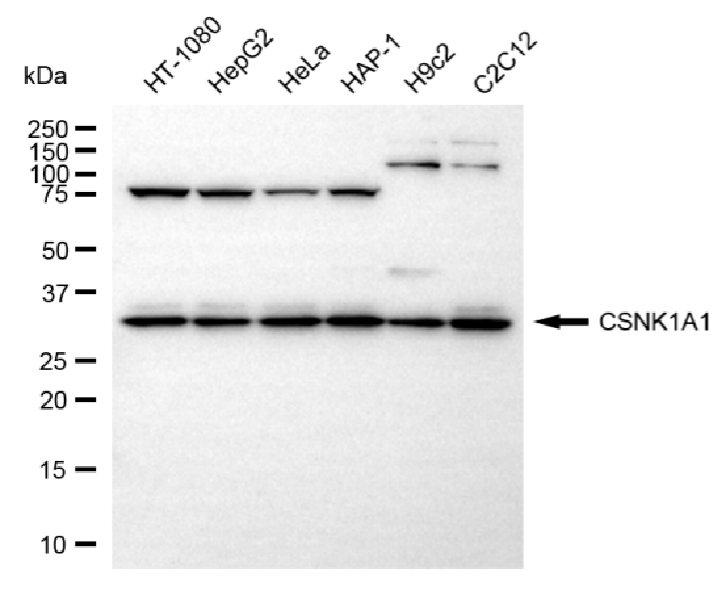

Western blotting analysis using CSNK1A1 antibody (R020472). Total cell lysates (30 μg) from various cell lines were loaded and separated by SDS-PAGE. The blot was incubated with CSNK1A1 antibody (R020472, 1:5,000) and HRP-conjugated goat anti-rabbit secondary antibody (1:20,000) respectively. Image was developed using ECL Substrate Kit.

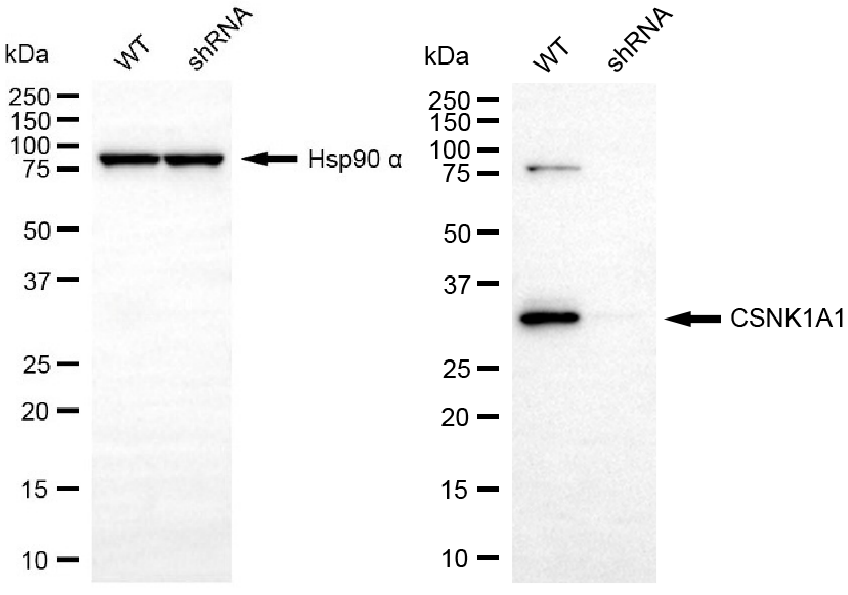

Western blotting analysis using CSNK1A1 antibody (R020472). CSNK1A1 expression in wild-type (WT) and CSNK1A1 shRNA knockdown (KD) HeLa cells with 20 μg of total cell lysates. Hsp90 α serves as a loading control. The blot was incubated with CSNK1A1 antibody (R020472, 1:5,000) and HRP-conjugated goat anti-rabbit secondary antibody (1:20,000) respectively. Image was developed using ECL Substrate Kit.

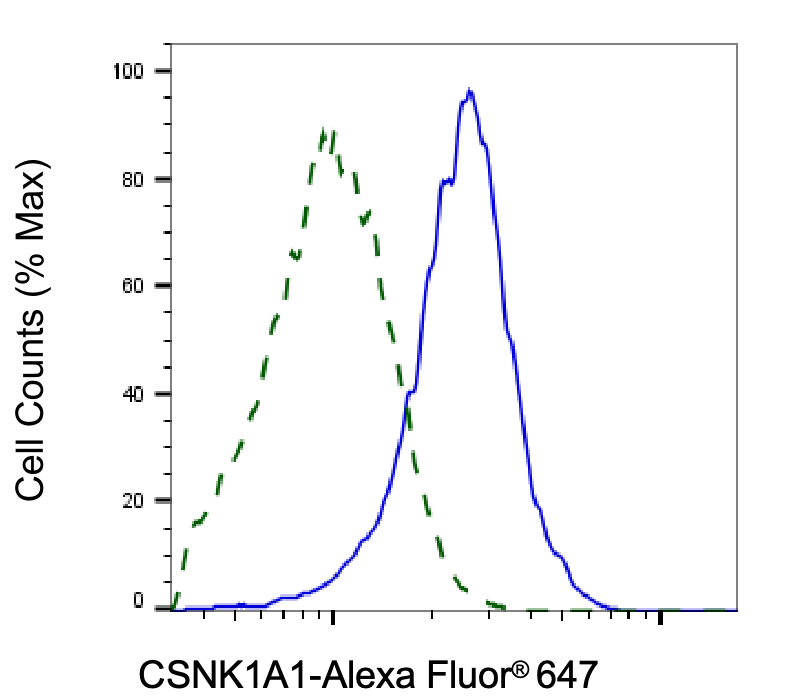

Validation of CSNK1A1 knockdown using flow cytometry. Wild-type(WT, Blue) and knockdown(KD, Green) HeLa cells were stained with CSNK1A1 antibody (R020472, 1:2,000) and analyzed using BD flow cytometer.
