Flow cytometric analysis of Protein kinase N1 expression in C2C12 cells using Protein kinase N1 antibody (R020436, 1:2,000). Green, isotype control; red, Protein kinase N1.

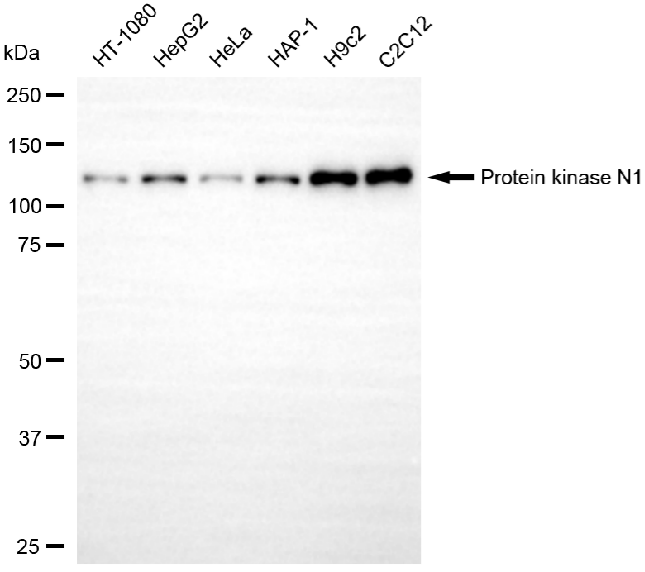

Western blotting analysis using protein kinase N1 antibody (R020436). Total cell lysates (30 μg) from various cell lines were loaded and separated by SDS-PAGE. The blot was incubated with protein kinase N1 antibody (R020436, 1:5,000) and HRP-conjugated goat anti-rabbit secondary antibody (1:20,000) respectively. Image was developed using ECL Substrate Kit.

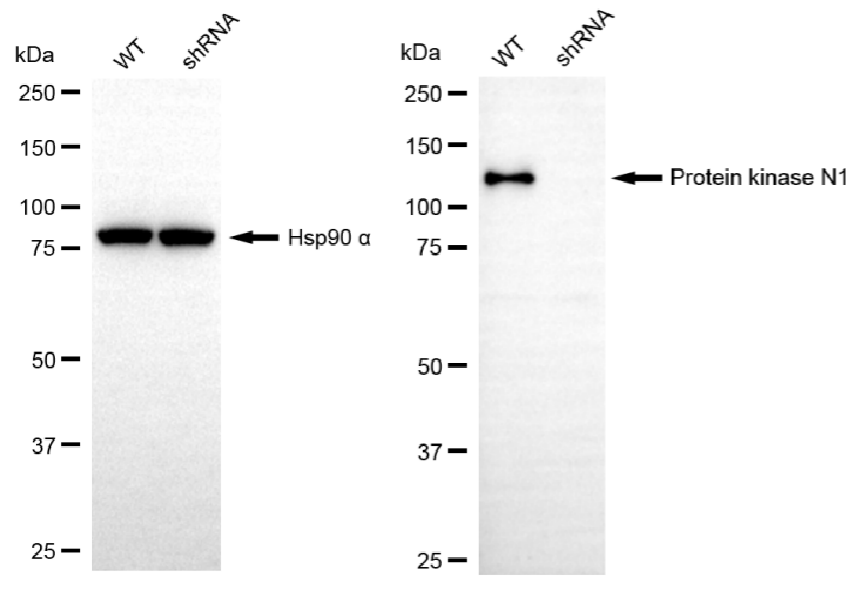

Western blotting analysis using protein kinase N1 antibody (R020436). Protein kinase N1A expression in wild-type (WT) and protein kinase N1 (PKN1) shRNA knockdown (KD) HeLa cells with 20 μg of total cell lysates. Hsp90 α serves as a loading control. The blot was incubated with protein kinase N1 antibody (R020436, 1:5,000) and HRP-conjugated goat anti-rabbit secondary antibody (1:20,000) respectively. Image was developed using ECL Substrate Kit.

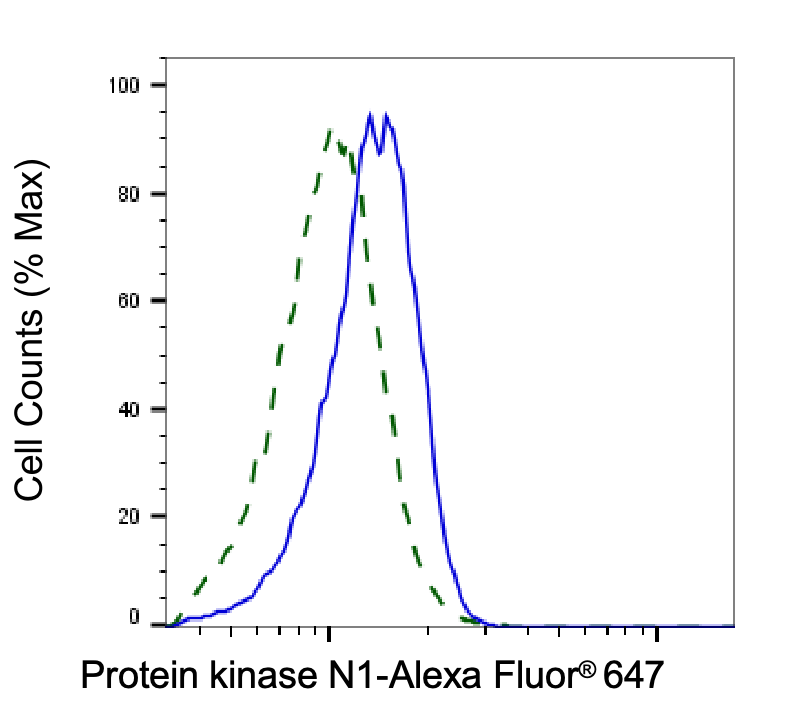

Validation of Protein kinase N1 knockdown using flow cytometry. Wild-type(WT, Blue) and knockdown(KD, Green) HeLa cells were stained with Protein kinase N1 antibody (R020436, 1:2,000) and analyzed using BD flow cytometer.
