Flow cytometric analysis of Integrin beta-1/CD29 expression in HT-1080 cells using Integrin beta-1/CD29 antibody (R020336,1:2,000). Green, isotype control; red, Integrin beta-1/CD29.

Immunocytochemical staining of HT-1080 cells with Integrin beta-1/CD29 antibody (R020336, 1:1,000). Nuclei were stained blue with DAPI; Integrin beta-1/CD29 was stained magenta with Alexa Fluor® 647. Images were taken using Leica stellaris 5. Protein abundance based on laser Intensity and smart gain: Medium. Scale bar: 20 μm.

Immunohistochemistry was performed on paraffin-embedded human bladder carcinoma using integrin beta-1/CD29 antibody (R020336, 1:200). Antigen retrieval was done in sodium citrate buffer (pH 6.0). DAB was used for detection, with hematoxylin counterstaining. Images were acquired using a Nikon Ci-L Plus microscope (40× objective). Scale bar: 25 μm.

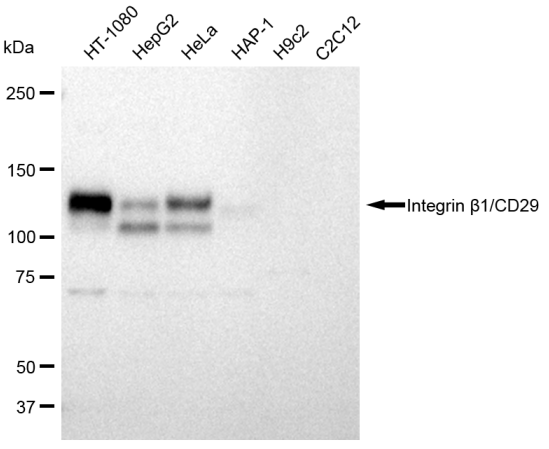

Western blotting analysis using Integrin β1/CD29 antibody (R020336). Total cell lysates (30 μg) from various cell lines were loaded and separated by SDS-PAGE. The blot was incubated with Integrin β1/CD29 antibody (R020336,1:5,000) and HRP-conjugated goat anti rabbit secondary antibody (1:20,000) respectively. Image was developed using ECL Substrate Kit.

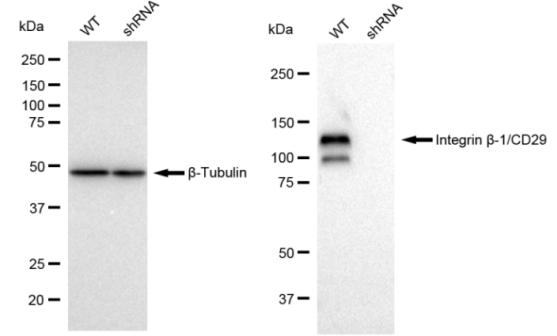

Western blotting analysis using Integrin beta-1/CD29 antibody (R020336). Integrin beta-1/CD29 expression in wild type (WT) and Integrin beta-1/CD29 shRNA knockdown (KD) HeLa cells with 30 μg of total cell lysates. β-Tubulin serves as a loading control. The blot was incubated with Integrin beta-1/CD29 antibody (R020336,1:5,000) and HRP-conjugated goat anti rabbit secondary antibody (1:50,000) respectively. Image was developed using ECL Substrate Kit.

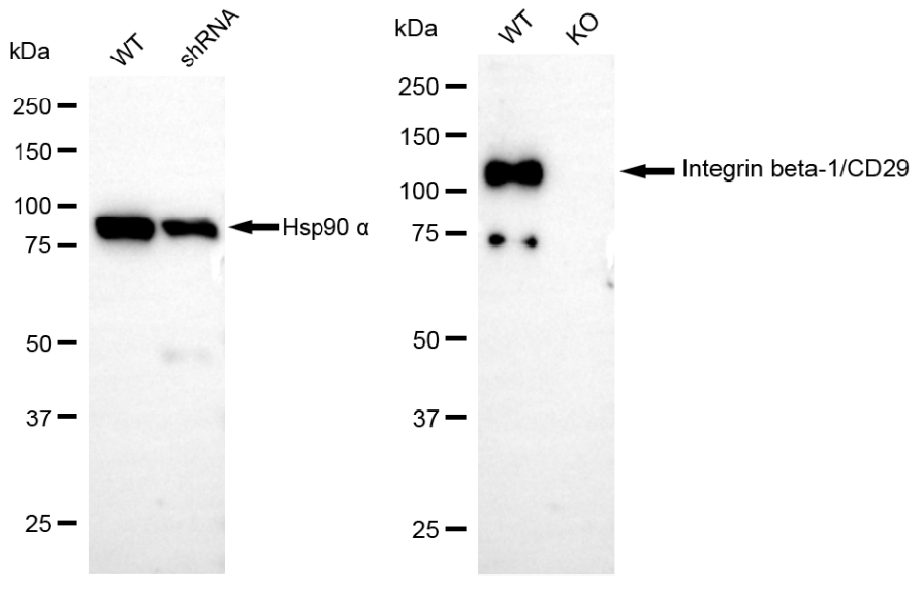

Western blotting analysis using Integrin beta-1/CD29 antibody (R020336). Integrin beta-1/CD29 expression in wild type (WT) and Integrin beta-1/CD29 knockout (KO) HeLa cells with 30 μg of Total cell lysates. Hsp90 α serves as a loading control. The blot was incubated with Integrin beta-1/CD29 antibody (R020336, 1:5,000) and HRP-conjugated goat anti rabbit secondary antibody (1:50,000) respectively. Image was developed using ECL Substrate Kit.
