Western blotting analysis using fyn antibody (R020176). Total cell lysates (30 μg) from various cell lines were loaded and separated by SDS-PAGE. The blot was incubated with fyn antibody (R020176, 1:5,000) and HRP-conjugated goat anti-rabbit secondary antibody (1:20,000) respectively. Image was developed using ECL Substrate Kit.

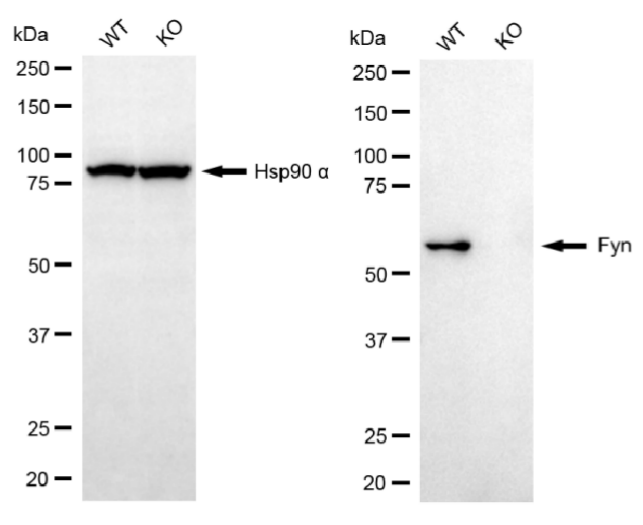

Western blotting analysis using Fyn antibody (R020176). Fyn expression in wild-type (WT) and FYN knockout (KO) 293T cells with 20 μg of total cell lysates. Hsp90 α serves as a loading control. The blot was incubated with Fyn antibody (R020176, 1:5,000) and HRP-conjugated goat anti-rabbit secondary antibody (1:20,000) respectively. Image was developed using ECL Substrate Kit.

Immunocytochemical staining of HT-1080 cells with Fyn antibody (R020176, 1:1,000). Nuclei were stained blue with DAPI; Fyn was stained magenta with Alexa Fluor® 647. Images were taken using Leica stellaris 5. Protein abundance based on laser Intensity and smart gain: Medium. Scale bar, 20 μm.
