Western Blot - Anti-ATG4A Rabbit mAb [96N44G21]

All lanes: R014001 at 1:1,000 dilution

Lane 1: HepG2 (Human hepatocarcinoma epithelial cell) whole cell lysates

Lane 2: Rat heart whole tissue lysates

Lysates/proteins at 10 µg per lane.

Secondary antibody: Goat Anti-Rabbit IgG(H+L), HRP Conjugated (Cat. No. LF102) at 1:5,000 dilution

Predicted band size: 45 kDa

Observed band size: 45 kDa

Developed using the ECL technique (Cat. No. SQ201).

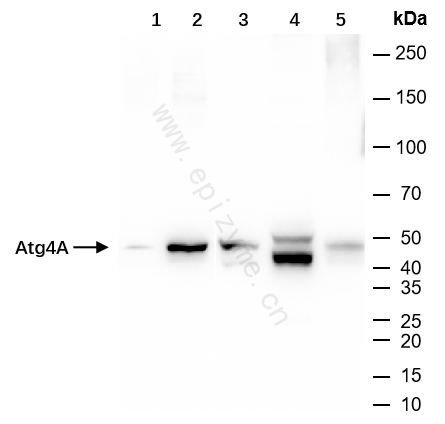

Western Blot - Anti-ATG4A Rabbit mAb [96N44G21]

All lanes: R014001 at 1:1,000 dilution

Lane 1: Rat muscle whole tissue lysates

Lane 2: Rat heart whole tissue lysates

Lane 3: Rat kidney whole tissue lysates

Lane 4: Mouse brain whole tissue lysates

Lane 5: Mouse heart whole tissue lysates

Lysates/proteins at 10 µg per lane.

Secondary antibody: Goat Anti-Rabbit IgG(H+L), HRP Conjugated (Cat. No. LF102) at 1:5,000 dilution

Predicted band size: 45 kDa

Observed band size: 45 kDa

Developed using the ECL technique (Cat. No. SQ201).

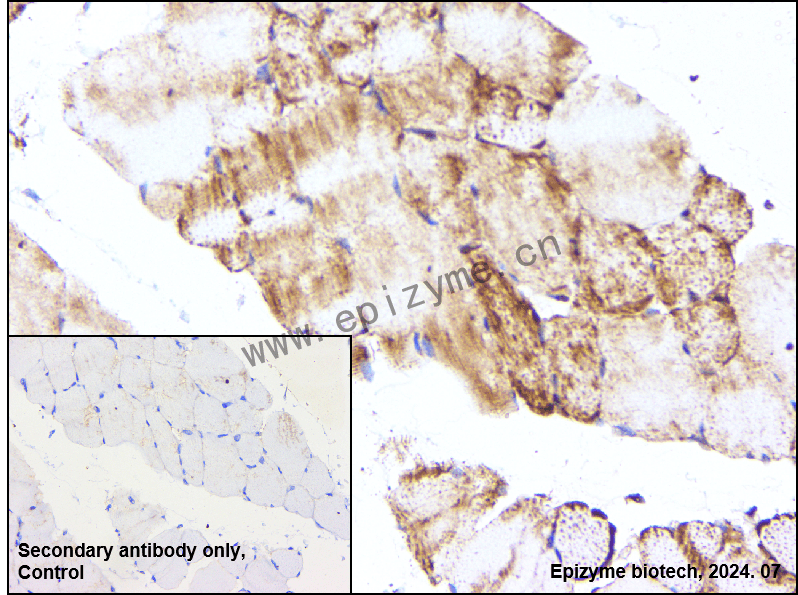

Immunohistochemistry - Anti-ATG4A Rabbit mAb [96N44G21]

Sample: Paraformaldehyde-fixed, paraffin embedded rat muscle tissue

Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 30 mins.

Primary antibody: R014001 at 1:200 dilution

Secondary antibody: Goat Anti-Rabbit IgG (H+L), HRP conjugated at 1:1,000 dilution

DAB was used as the chromogen.

Counter stained with hematoxylin.

Positive/negative staining were presented.

Only the secondary antibody was used as the negative control.

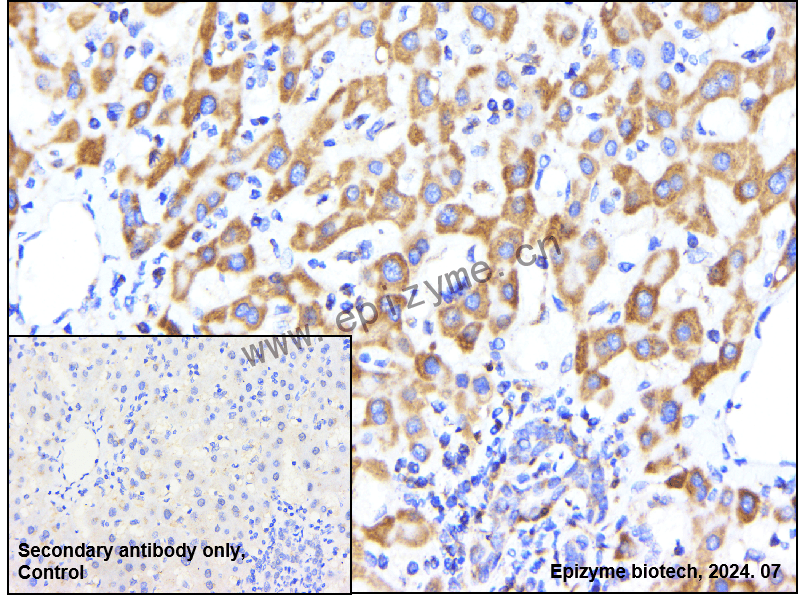

Immunohistochemistry - Anti-ATG4A Rabbit mAb [96N44G21]

Sample: Paraformaldehyde-fixed, paraffin embedded human hepatoma tissue

Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 30 mins.

Primary antibody: R014001 at 1:200 dilution

Secondary antibody: Goat Anti-Rabbit IgG (H+L), HRP conjugated at 1:1,000 dilution

DAB was used as the chromogen.

Counter stained with hematoxylin.

Positive/negative staining were presented.

Only the secondary antibody was used as the negative control.

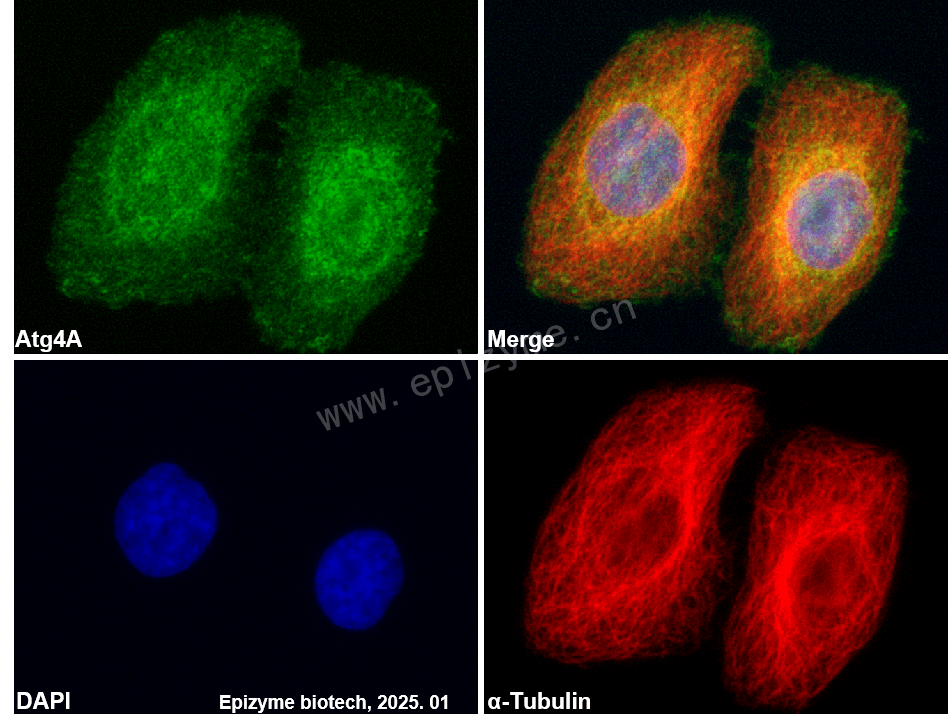

Immunofluorescence - Anti-ATG4A Rabbit mAb [96N44G21]

Sample: Hela cells

The cells were fixed with 4% paraformaldehyde (10 min), permeabilized with 0.5% Triton X-100 for 10 minutes and then blocked with 5% BSA in 0.1% PBS-Tween for 0.5 hours.

Primary antibodies: R014001 at 1:100 dilution and α-tubulin Mouse Monoclonal Antibody (Cat. No. LF209) at 1:100 dilution

Secondary antibodies: Goat anti-Rabbit (488) at 1:1,000 dilution (shown in green) and Goat anti-Mouse (555) at 1:1,000 dilution (shown in red)

Nuclei were stained with DAPI (shown in blue).
