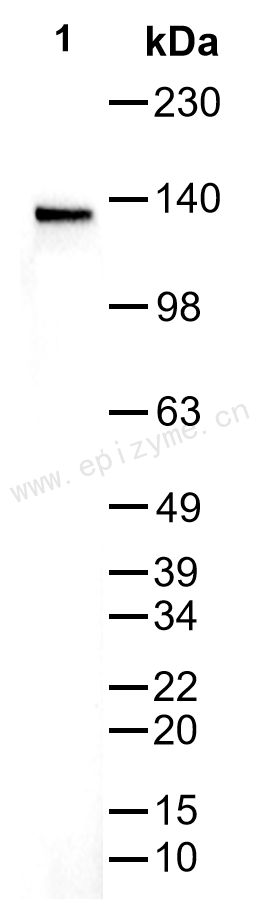

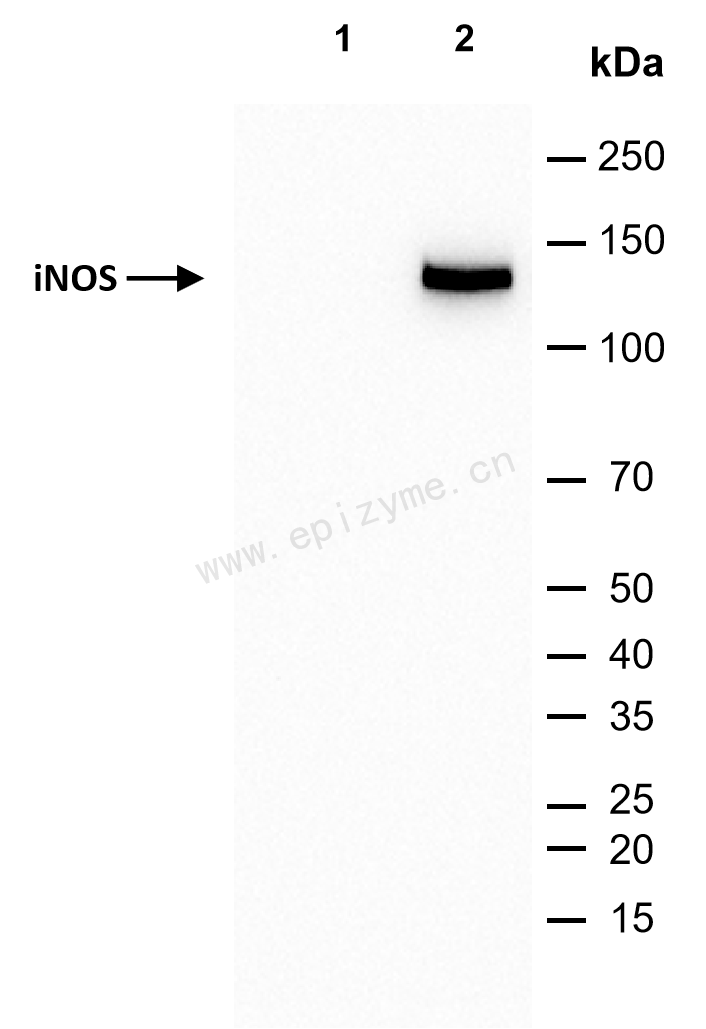

Western Blot - Anti-iNOS Rabbit mAb [29V01R82]

All lanes: R013877 at 1:1,000 dilution

Lane 1: Balb/c Mouse intestines whole tissue lysates

Lane 2: Balb/c Mouse kidney whole tissue lysates

Lane 3: Balb/c Mouse muscle whole tissue lysates

Lysates/proteins at 10 µg per lane.

Secondary antibody: Goat Anti-Rabbit IgG(H+L), HRP Conjugated (Cat. No. LF102) at 1:5,000 dilution

Predicted band size: 131 kDa

Observed band size: 131 kDa

Developed using the ECL technique (Cat. No. SQ201).

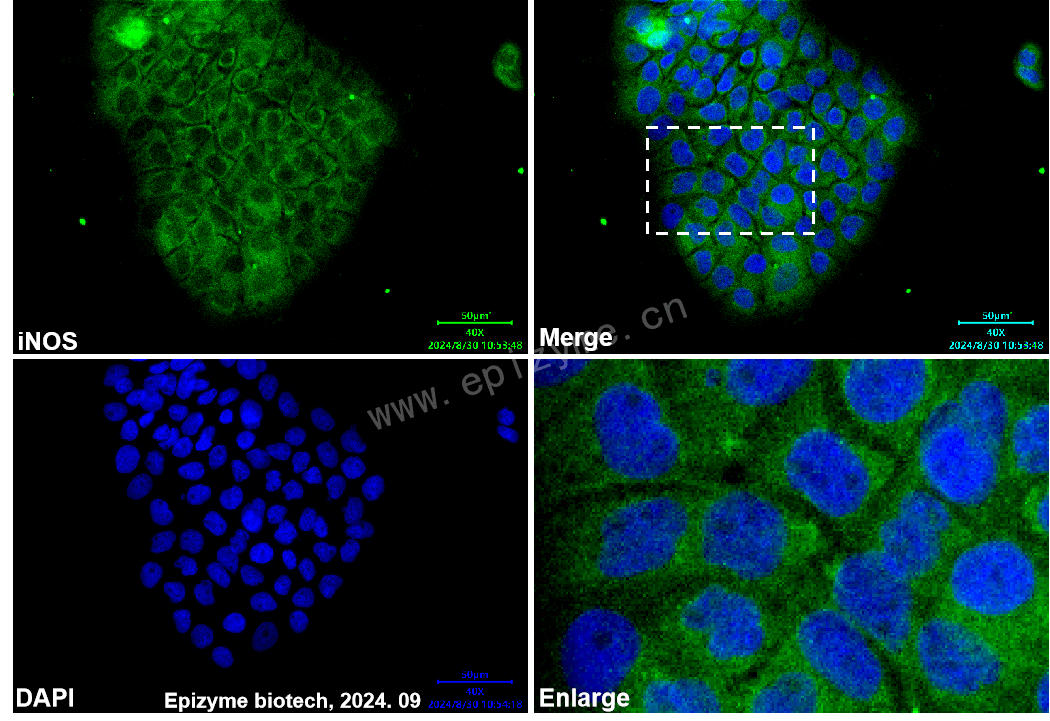

Immunofluorescence - Anti-iNOS Rabbit mAb [29V01R82]

Sample: A431 cells

The cells were fixed with 4% paraformaldehyde (10 min), permeabilized with 0.5% Triton X-100 for 10 minutes and then blocked with 5% BSA in 0.1% PBS-Tween for 0.5 hours.

Primary antibodies: R013877 at 1:100 dilution

Secondary antibodies: Goat anti-Rabbit (488) at 1:1,000 dilution (shown in green)

Nuclei were stained with DAPI (shown in blue).
