Western Blot - Anti-SQSTM1/p62 Rabbit mAb [53N86E71]

All lanes: R013790 at 1:1,000 dilution

Lane 1: HCT116 (human colorectal carcinoma epithelial cell) whole cell lysates

Lane 2: T24 (human bladder cancer epithelial cell) whole cell lysates

Lane 3: HepG2 (human hepatocellular carcinoma epithelial cell) whole cell lysates

Lane 4: SCC-9 (human tongue squamous carcinoma epithelial cell) whole cell lysates

Lane 5: U2OS (human osteosarcoma epithelial cell) whole cell lysates

Lysates/proteins at 10 µg per lane.

Secondary antibody: Goat Anti-Rabbit IgG(H+L), HRP Conjugated (Cat. No. LF102) at 1:5,000 dilution

Predicted band size: 62 kDa

Observed band size: 62 kDa

Developed using the ECL technique (Cat. No. SQ201).

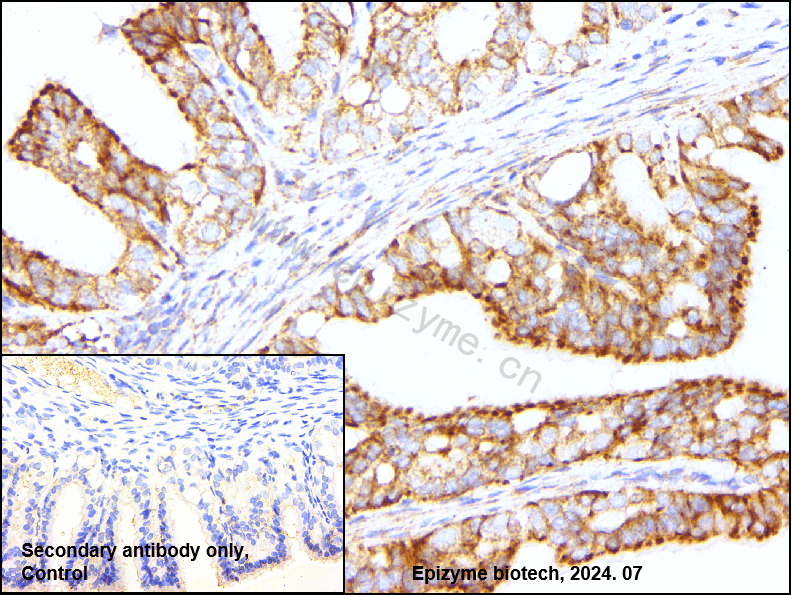

Immunohistochemistry - Anti-SQSTM1/p62 Rabbit mAb [53N86E71]

Sample: Paraformaldehyde-fixed, paraffin embedded rat ovary tissue

Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 30 mins.

Primary antibody: R013790 at 1:200 dilution

Secondary antibody: Goat Anti-Rabbit IgG (H+L), HRP conjugated at 1:1,000 dilution

DAB was used as the chromogen.

Counter stained with hematoxylin.

Positive/negative staining were presented.

Only the secondary antibody was used as the negative control.

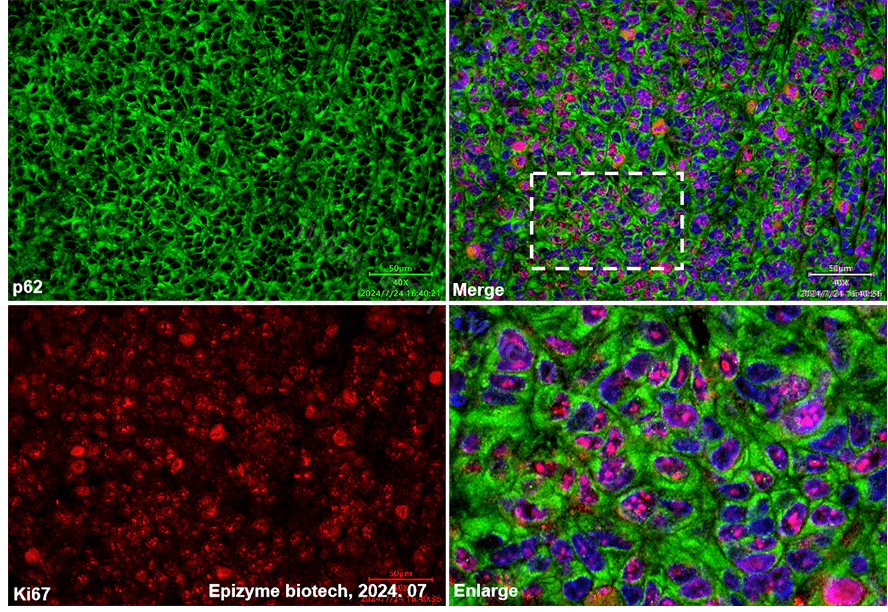

Immunofluorescence - Anti-SQSTM1/p62 Rabbit mAb [53N86E71]

Sample: Paraformaldehyde-fixed, paraffin embedded mouse subcutaneous tumor tissue

The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 30 mins.

Primary antibody: R013790 at 1:100 dilution and Anti-Ki67 Mouse mAb at 1:100 dilution

Secondary antibodies: Goat anti-Rabbit (488) at 1:1,000 dilution (shown in green) and Goat anti-Mouse (555) at 1:1,000 dilution (shown in red)

Nuclei were stained with DAPI (shown in blue).
