Western Blot - Anti-PIK3CA Mouse mAb [95R97F38]

All lanes: M900038 at 1:1,000 dilution

Lane 1: HeLa (Human cervix adenocarcinoma epithelial cell) whole cell lysates

Lane 2: HepG2 (Human hepatocarcinoma epithelial cell) whole cell lysates

Lane 3: HCT116 (Human colorectal carcinoma epithelial cell)  whole cell lysates

Lane 4: MCF-7 (human breast adenocarcinoma epithelial cell) whole cell lysates

Lane 5: U87 (Human malignant glioblastoma epithelial cells) whole cell lysates

Lane 6: PC-12 (Rat adrenal pheochromocytoma epithelial cell) whole cell lysates

Lysates/proteins at 10 µg per lane.

Secondary antibody: Goat Anti-Mouse IgG (H+L), HRP Conjugated (Cat. No. LF101) at 1:5,000 dilution

Predicted band size: 124 kDa

Observed band size: 124 kDa

Developed using the ECL technique (Cat. No. SQ201).

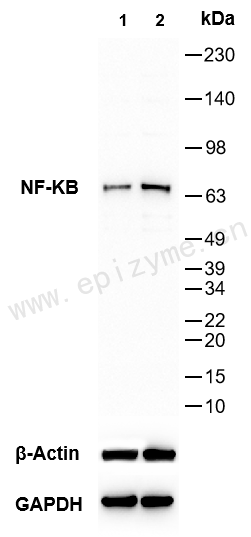

Western Blot - Anti-PIK3CA Mouse mAb [95R97F38]

All lanes: M900038 at 1:1,000 dilution

Lane 1: Whole-cell lysates of 293T cells

Lane 2: Lysates from 293T cells overexpressing truncated PIK3CA (52 kDa)

Lysates/proteins at 10 µg per lane.

Secondary antibody: Goat Anti-Mouse IgG (H+L), HRP Conjugated (Cat. No. LF101) at 1:5,000 dilution

Predicted band size: 52 kDa

Observed band size: 52 kDa

Developed using the ECL technique (Cat. No. SQ201).

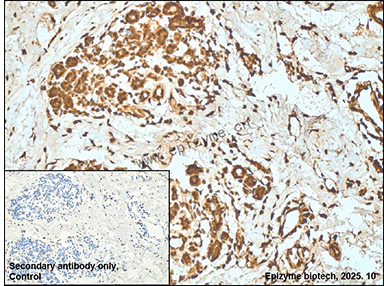

Immunohistochemistry - Anti-PIK3CA Mouse mAb [95R97F38]

Sample: Paraformaldehyde-fixed, paraffin embedded human colonic cancer tissue

Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 30 mins.

Primary antibody: M900038 at 1:200 dilution

Secondary antibody: Goat Anti-Mouse IgG (H+L), HRP conjugated at 1:1,000 dilution

DAB was used as the chromogen.

Counter stained with hematoxylin.

Positive/negative staining were presented.

Only the secondary antibody was used as the negative control.

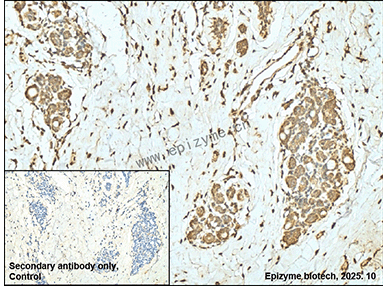

Immunohistochemistry - Anti-PIK3CA Mouse mAb [95R97F38]

Sample: Paraformaldehyde-fixed, paraffin embedded human breast cancer tissue

Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 30 mins.

Primary antibody: M900038 at 1:200 dilution

Secondary antibody: Goat Anti-Mouse IgG (H+L), HRP conjugated at 1:1,000 dilution

DAB was used as the chromogen.

Counter stained with hematoxylin.

Positive/negative staining were presented.

Only the secondary antibody was used as the negative control.

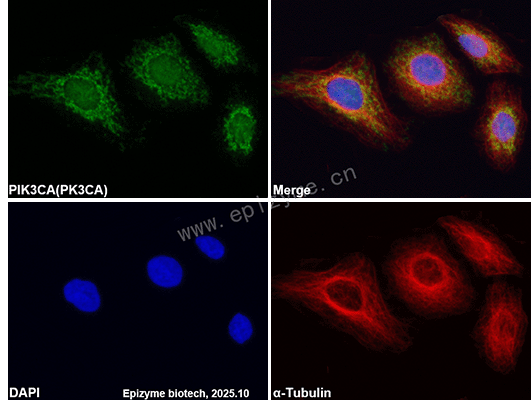

Immunofluorescence - Anti-PIK3CA Mouse mAb [95R97F38]

Sample: HeLa cells

The cells were fixed with 4% paraformaldehyde (10 min), permeabilized with 0.5% Triton X-100 for 10 minutes and then blocked with 5% BSA in 0.1% PBS-Tween for 0.5 hours.

Primary antibodies: M900038 at 1:100 dilution and α-tubulin Mouse Monoclonal Antibody (Cat. No. LF209) at 1:100 dilution

Secondary antibodies: Goat anti-Mouse (488) (Cat. No. LF107) at 1:1,000 dilution (shown in green) and Goat anti-Rabbit (555) at 1:1,000 dilution (shown in red)

Nuclei were stained with DAPI (shown in blue).

Western Blot - Anti-Phospho-NF-kB p65 (Ser536) Rabbit mAb [82S85K62]

All lanes: M900038 at 1:1,000 dilution

Lane 1: HeLa (Human cervix adenocarcinoma epithelial cell) whole cell lysates

Lane 2: SH-SY5Y (Human neuroblastoma epithelial cell) whole cell lysates

Lane 3: Raw264.7 (Mouse mononuclear macrophage leukemia cell) whole cell lysates

Lane 4: PC-12 (Rat adrenal pheochromocytoma epithelial cell) whole cell lysates

Lysates/proteins at 10 µg per lane.

Secondary antibody: Goat Anti-Rabbit IgG (H+L), HRP Conjugated (Cat. No. LF102) at 1:5,000 dilution

Predicted band size: 65 kDa

Observed band size: 65 kDa

Developed using the ECL technique (Cat. No. SQ201).

Western Blot - Anti-Phospho-NF-kB p65 (Ser536) Rabbit mAb [82S85K62]

All lanes: M900038 at 1:1,000 dilution

Lane 1: HeLa (Human cervix adenocarcinoma epithelial cell) whole cell lysates

Lane 2: Hela cells treated with 10ng/mL TNF-a for 15min

Lysates/proteins at 10 µg per lane.

Secondary antibody: Goat Anti-Rabbit IgG (H+L), HRP Conjugated (Cat. No. LF102) at 1:5,000 dilution

Predicted band size: 65 kDa

Observed band size: 65 kDa

Developed using the ECL technique (Cat. No. SQ201).

Immunofluorescence - Anti-Phospho-NF-kB p65 (Ser536) Rabbit mAb [82S85K62]

Sample: HeLa cells

The cells were fixed with 4% paraformaldehyde (10 min), permeabilized with 0.1% Triton X-100 for 5 minutes and then blocked with 5% BSA in 0.1% PBS-Tween for 0.5 hours.

Primary antibodies: M900038 at 1:100 dilution

Secondary antibodies: Goat anti-Rabbit (488) at 1:1,000 dilution (shown in green)

Nuclei were stained with DAPI (shown in blue).
