Immunocytochemical staining of HepG2 cells with Melanocyte inducing transcription factor antibody(M020887, 1:1,000) . Nuclei were stained blue with DAPI; Melanocyte inducing transcription factor was stained magenta with Alexa Fluor® 647. Images were taken using Leica stellaris 5. Protein abundance based on laser Intensity and smart gain: Medium. Scale bar, 20 μm.

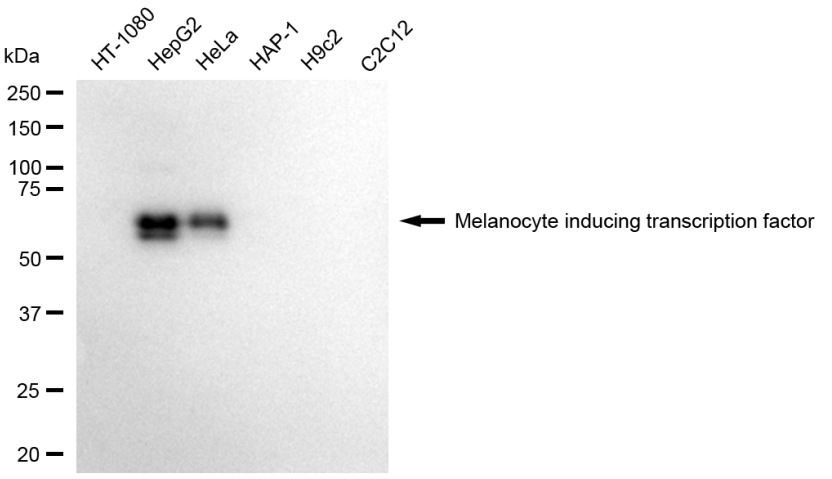

Western blotting analysis using Melanocyte inducing transcription factor antibody (M020887). Total cell lysates (30 μg) from various cell lines were loaded and separated by SDS-PAGE. The blot was incubated with Melanocyte inducing transcription factor antibody (M020887, 1:5,000) and HRP-conjugated goat anti-mouse secondary antibody (1:20,000) respectively. Image was developed using ECL Substrate Kit.

Western blotting analysis using melanocyte inducing transcription factor antibody (M020887). Melanocyte inducing transcription factor expression in wild-type (WT) and melanocyte inducing transcription factor (MITF) shRNA knockdown (KD) HeLa cells with 30 μg of total cell lysates. Hsp90 α serves as a loading control. The blot was incubated with melanocyte inducing transcription factor antibody (M020887, 1:5,000) and HRP-conjugated goat anti-mouse secondary antibody (1:20,000) respectively. Image was developed using ECL Substrate Kit.
