Flow cytometric analysis of EIF2AK2 expression in HepG2 cells using EIF2AK2 antibody (M020679, 1:2,000). Green, isotype control; red, EIF2AK2.

Immunocytochemical staining of HepG2 cells with EIF2AK2 antibody(M020679, 1:1,000) . Nuclei were stained blue with DAPI; EIF2AK2 was stained magenta with Alexa Fluor® 647. Images were taken using Leica stellaris 5. Protein abundance based on laser Intensity and smart gain: Medium. Scale bar, 20 μm.

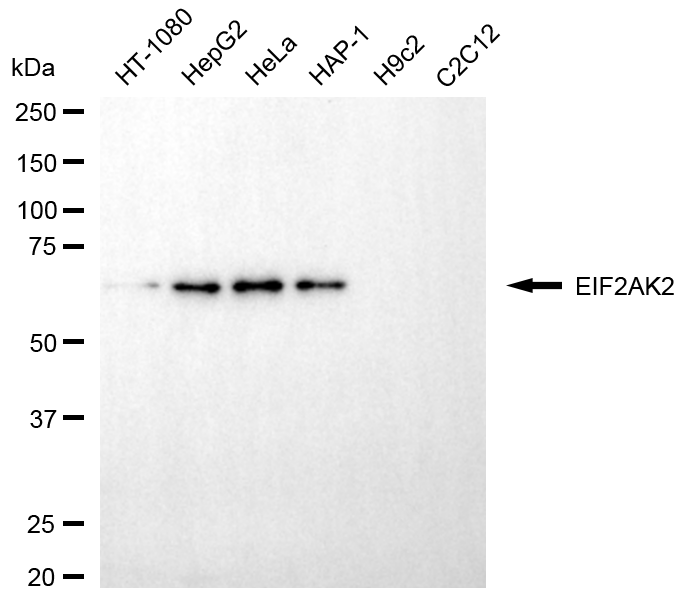

Western blotting analysis using EIF2AK2 antibody (M020679). Total cell lysates (30 μg) from various cell lines were loaded and separated by SDS-PAGE. The blot was incubated with EIF2AK2 antibody (M020679, 1:5,000) and HRP-conjugated goat anti-mouse secondary antibody (1:20,000) respectively. Image was developed using ECL Substrate Kit. EIF2AK2, eukaryotic translation initiation factor 2 alpha kinase 2.

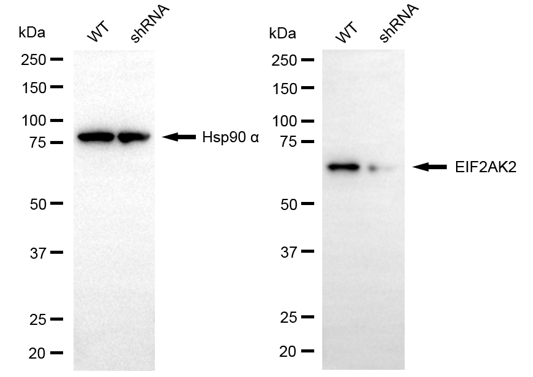

Western blotting analysis using EIF2AK2 antibody (M020679). EIF2AK2 expression in wild-type (WT) and EIF2AK2 shRNA knockdown (KD) HeLa cells with 20 μg of total cell lysates. Hsp90 α serves as a loading control. The blot was incubated with EIF2AK2 antibody (M020679, 1:5,000) and HRP-conjugated goat anti-mouse secondary antibody (1:20,000) respectively. Image was developed using ECL Substrate Kit.

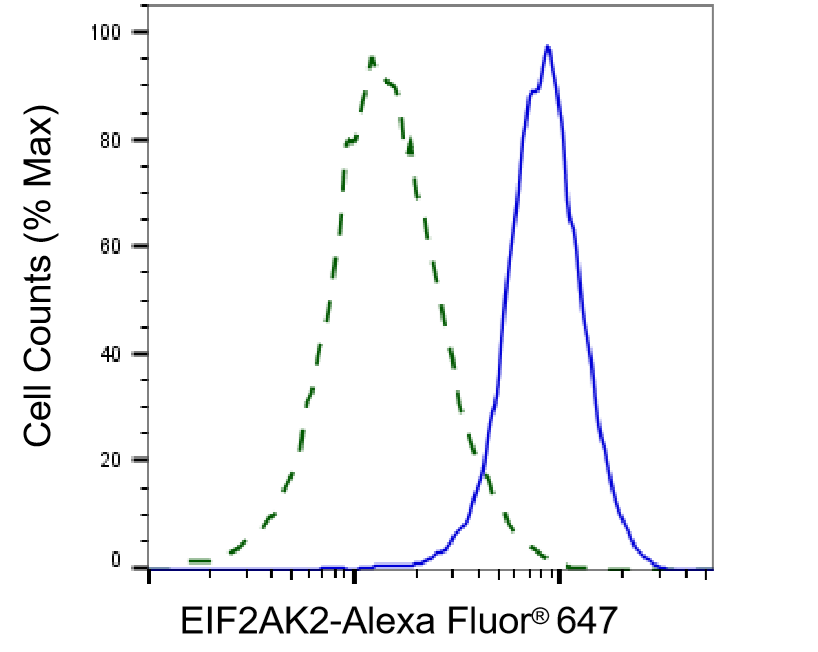

Validation of EIF2AK2 knockdown using flow cytometry. Wild-type(WT, Blue) and knockdown(KD, Green) HeLa cells were stained with EIF2AK2 antibody (M020679, 1:2,000) and analyzed using BD flow cytometer.

Immunocytochemical staining of HeLa cells using EIF2AK2 antibody (M020679, 1:1,000), Top panel: wild-type (WT); Bottom panal: EIF2AK2 shRNA knockdown (KD). Nuclei were stained blue with DAPI; EIF2AK2 was stained magenta with Alexa Fluor® 647. Scale bar, 20 μm.
