Western Blot - Anti-Bax Mouse mAb [11M61M02]

All lanes: M012868 at 1:1,000 dilution

Lane 1: HeLa (human cervix adenocarcinoma epithelial cell) whole cell lysates

Lane 2: MCF7 (human breast adenocarcinoma epithelial cell) whole cell lysates

Lane 3: HepG2 (human hepatocellular carcinoma epithelial cell) whole cell lysates

Lane 4: SW620 (human colorectal cancer epithelial cell) whole cell lysates

Lane 5: MSC (human mesenchymal stem cell) whole cell lysates

Lysates/proteins at 10 µg per lane.

Secondary antibody: Goat Anti-Mouse IgG(H+L), HRP Conjugated (Cat. No. LF101) at 1:5,000 dilution

Predicted band size: 21 kDa

Observed band size: 21 kDa

Developed using the ECL technique (Cat. No. SQ201).

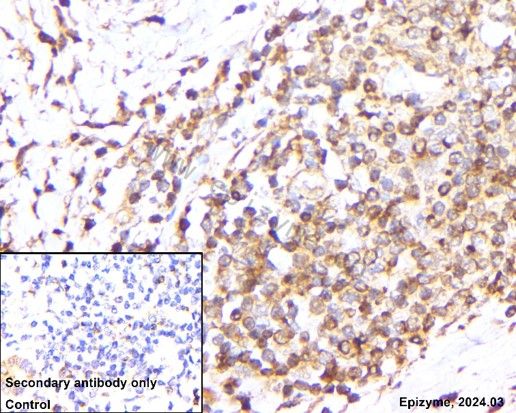

Immunohistochemistry - Anti-Bax Mouse mAb [11M61M02]

Sample: Paraformaldehyde-fixed, paraffin embedded human hepatoma carcinoma tissue

Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 30 mins.

Primary antibody: M012868 at 1:200 dilution

Secondary antibody: Goat Anti-Mouse IgG (H+L), HRP conjugated at 1:1,000 dilution

DAB was used as the chromogen.

Counter stained with hematoxylin.

Positive/negative staining were presented.

Only the secondary antibody was used as the negative control.

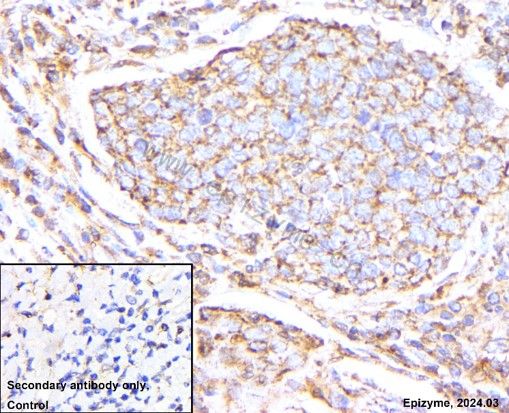

Immunohistochemistry - Anti-Bax Mouse mAb [11M61M02]

Sample: Paraformaldehyde-fixed, paraffin embedded human cervical cancer tissue

Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 30 mins.

Primary antibody: M012868 at 1:200 dilution

Secondary antibody: Goat Anti-Mouse IgG (H+L), HRP conjugated at 1:1,000 dilution

DAB was used as the chromogen.

Counter stained with hematoxylin.

Positive/negative staining were presented.

Only the secondary antibody was used as the negative control.

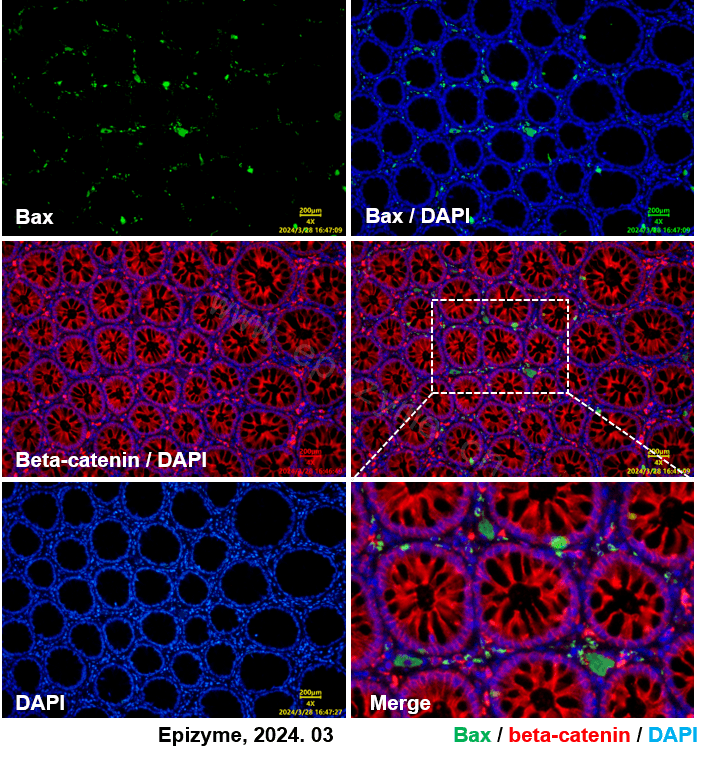

Immunofluorescence - Anti-Bax Mouse mAb [11M61M02]

Sample: Paraformaldehyde-fixed, paraffin embedded human colorectal carcinoma tissue

The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 30 mins.

Primary antibody: M012868 at 1:100 dilution and Anti-beta Catenin Rabbit mAb [41L48K19] (Cat. No. R010292) at 1:100 dilution

Secondary antibody: Goat anti-Mouse (488) at 1:1,000 dilution (shown in green) and Goat anti-Rabbit (546) at 1:1,000 dilution (shown in red)

Nuclei were stained with DAPI (shown in blue).
